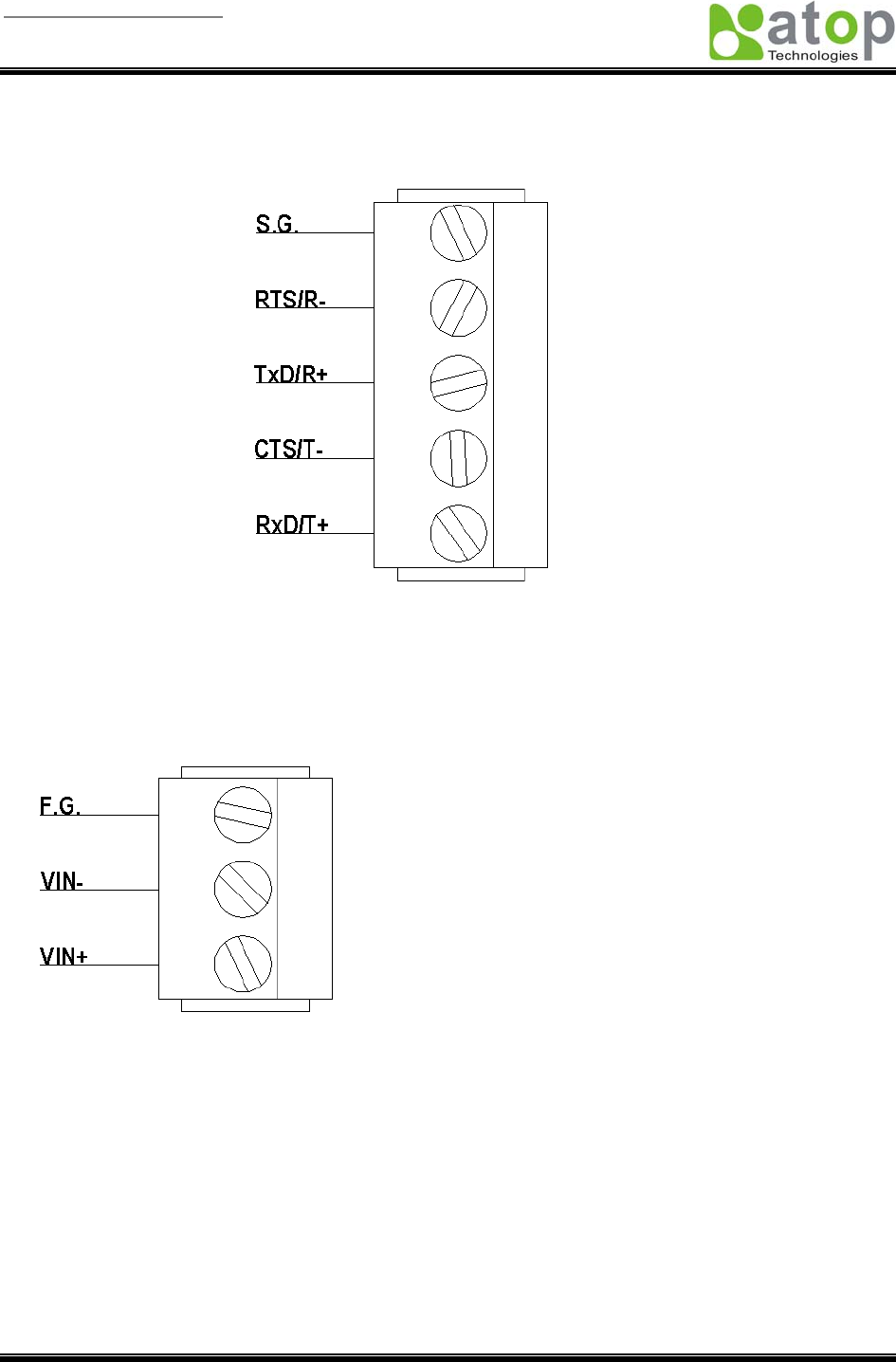

2. Terminal Block Connector
RS-485 only uses RTS/R- and TxD/R+ for data communication while RS-232 or RS-422 uses RTS/R-,
TxD/R+, CTS/T- and RxD/T+ for communicating data.
A.3.2 Power terminal block connector
