GW21W-MAXI is one port device, by default GW21W-MAXI TCP port number is 4660 which is

indicated in “Device TCP Port” field. If you select a device from invited device in the lower half

panel of the main window, the IP Address and port information will inherit from the selected

device.

After adding a virtual COM port its information will show on the left upper panel of the main

window. Move the mouse cursor on the existing virtual COM port and left click to highlight it for

further operation.

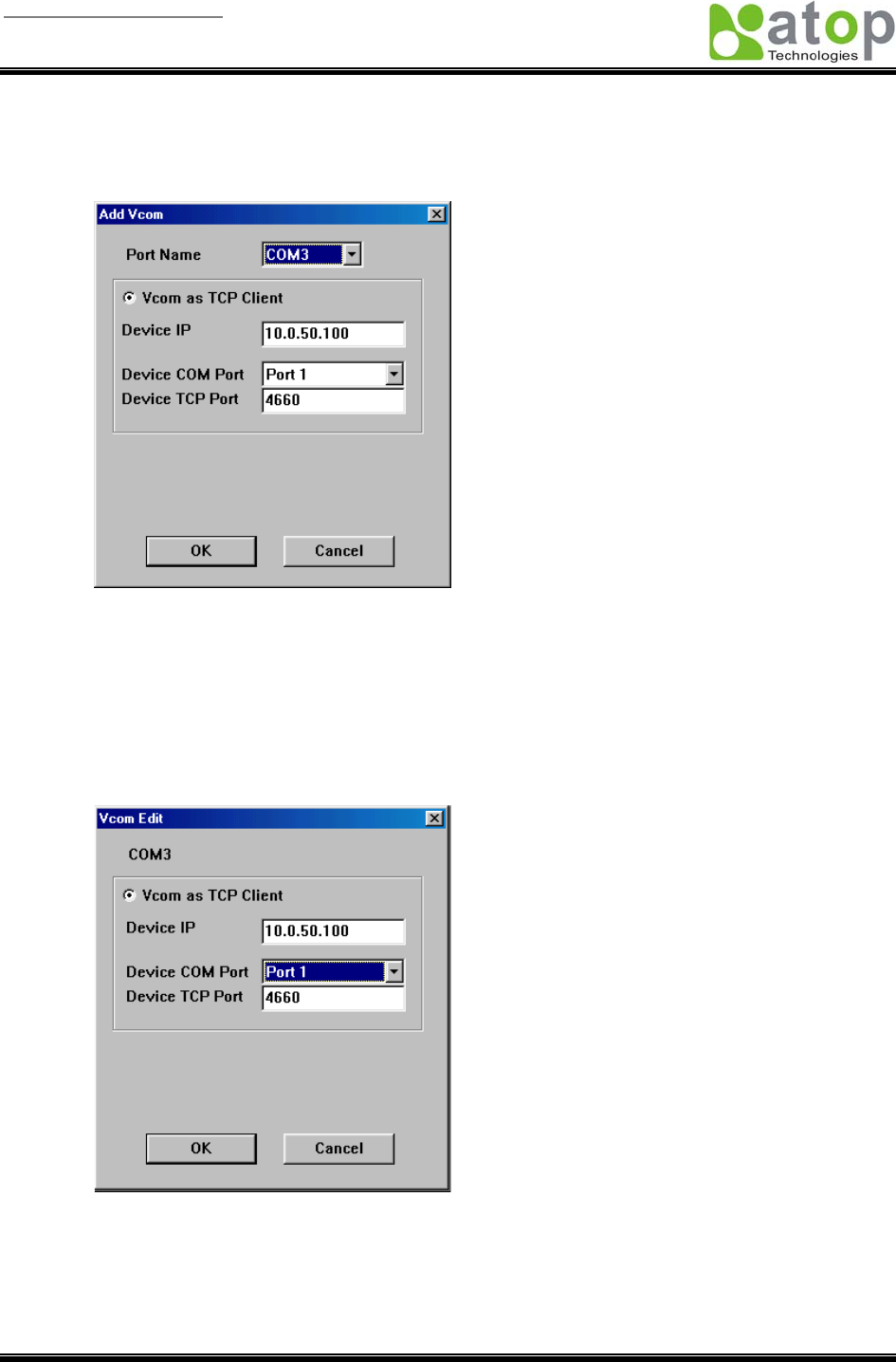

Edit a virtual COM port

To modify the setting of an existing virtual COM port, select a virtual COM port from the main

window and click on the ‘Edit Vcom’ button, the VcomEdit dialog box will pop up as following,

you can change port name, device IP, device COM port and device TCP port settings from this

pop up window.
