4.5.2.2 Run virtual COM program on monitoring PC

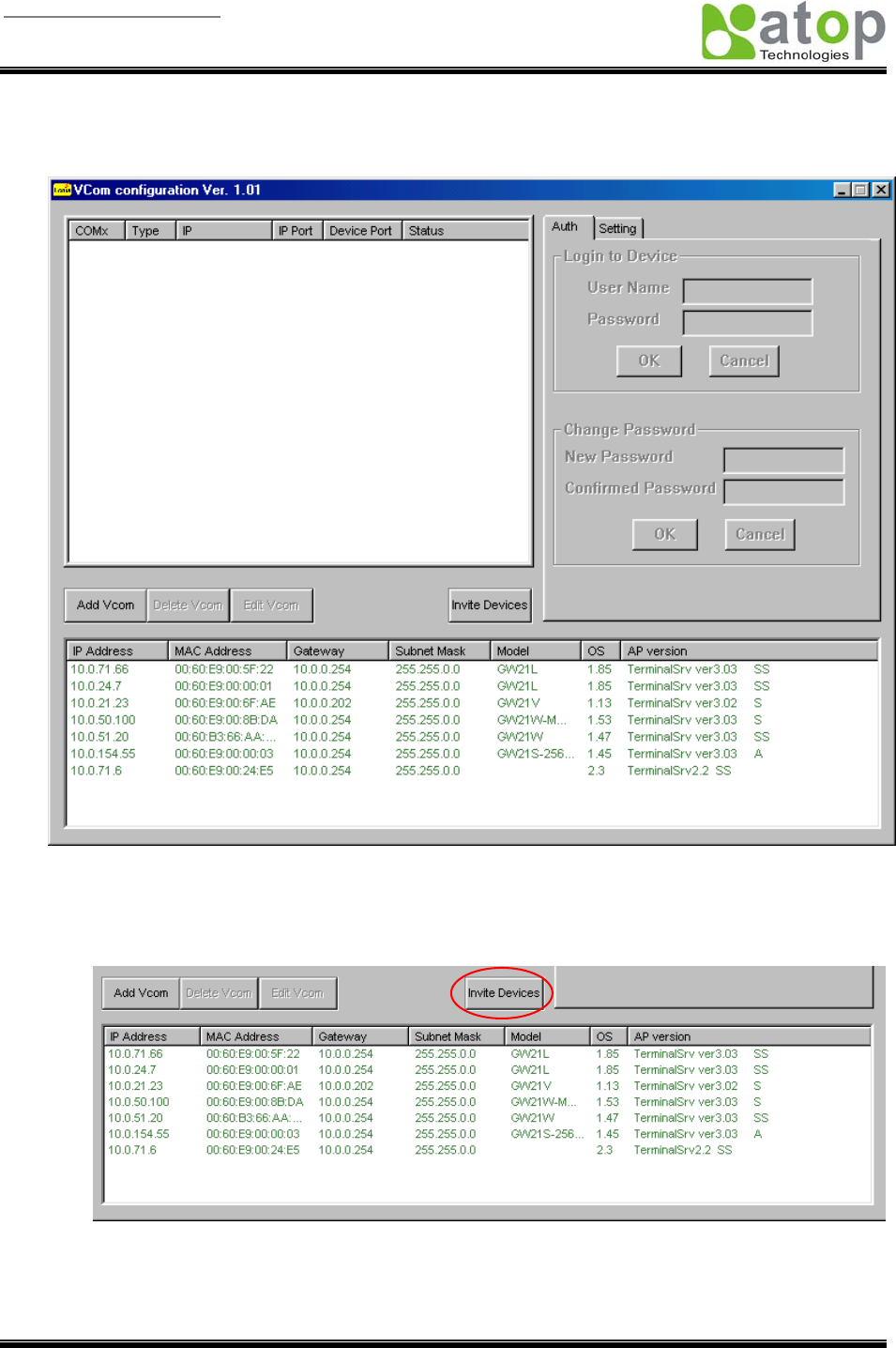

From monitoring PC open virtual COM program, the main window is shown as following:
Invite Devices
Click on the ‘Invite Devices’ button, the program searches for available ABLELink
Ethernet-Serial devices and pops up their network and device information. The shown devices
can be selected for the further operation as following:
Add virtual COM port
Click on the ‘Add Vcom’ button, the following dialog box will pop up for you to choose virtual
COM port number which maps to GW21W-MAXI COM port. Input GW21W-MAXI IP address in
the “Device IP” field, port 1 is the only choice in the “Device COM Port” field since
