Windows Start menu select Programs, Atop, Virtual COM, uninstall to remove the program.
4.5.2 Virtual COM communication
4.5.2.1 Enable virtual COM on GW21W-MAXI

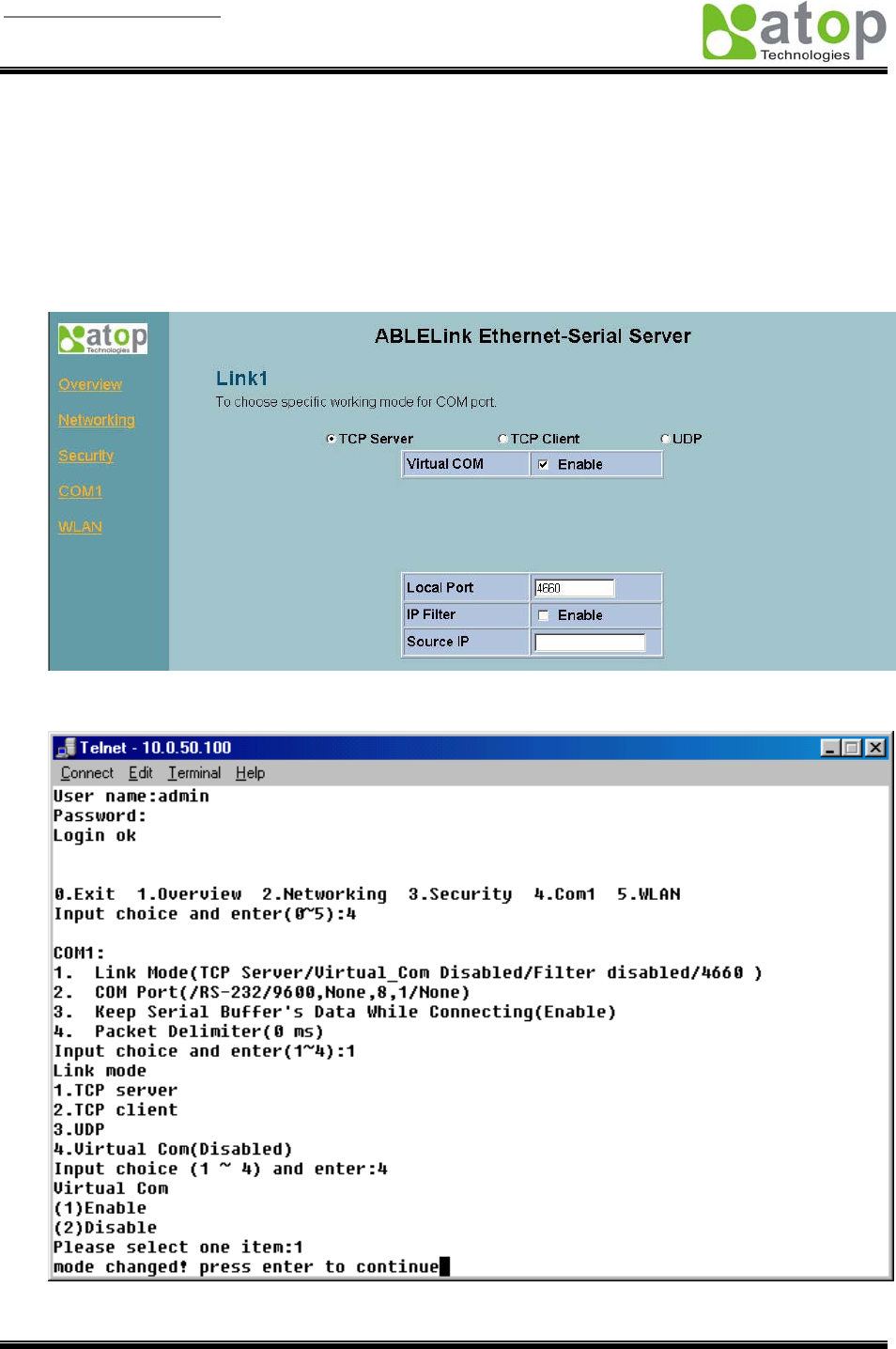

From web browser access to GW21W-MAXI by typing its IP address, click on COM1 link to access
COM1 page, on the top half of the page click on “TCP Server” and enable virtual COM by putting a
check in front of the “Enable” button, then type in the local port number in the “Local Port” field as
indicated in the following figure:
or you can enable virtual COM through telnet by setting COM1 as TCP server, and type in the local
port number for COM1, then enable virtual COM as shown in the following figure:
