37. Typical Characteristics
37.1 Current Consumption
37.1.1 Active Mode Supply Current

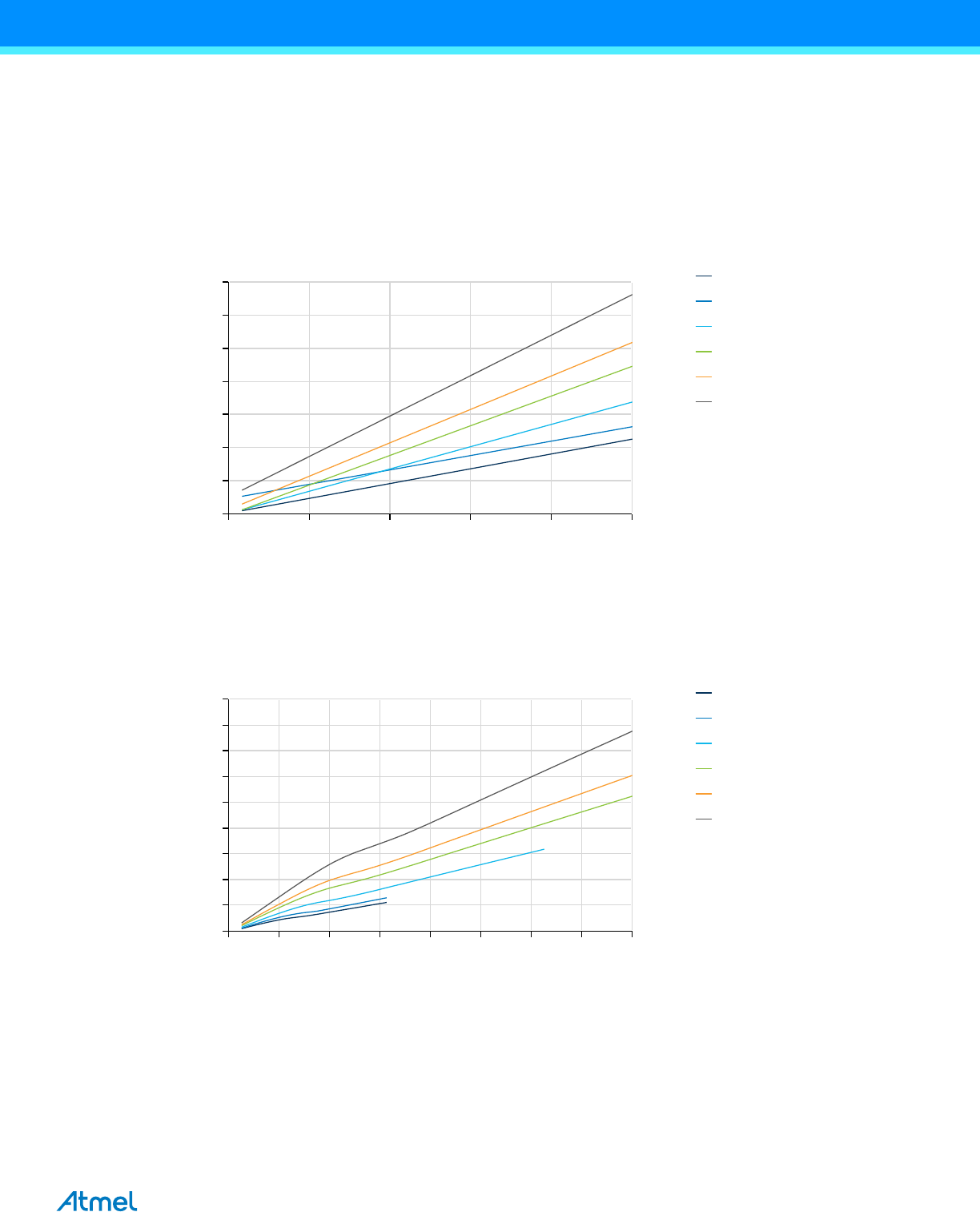

Figure 37-1. Active Mode Supply Current vs. Frequency
f
SYS
= 0 – 1MHz external clock, T = 25°C
Figure 37-2. Active Mode Supply Current vs. Frequency
f
SYS
= 0 – 32MHz external clock, T = 25°C
ICC [mA]
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.0 0.2 0.4 0.6 0.8 1.0
Frequency [MHz]
V_CC_ 1.6
1.8
2.2
2.7
3
3.6
ICC [mA]
0
1
2
3
4
5
6
7
8
9
0 4 8 12 16 20 24 28 32
Frequency [MHz]
V_CC_ 1.6
1.8
2.2
2.7
3
3.6
