The LUT works in all sleep modes. Combined with event system and one I/O pin, the LUT can wake-up the system if, and
only if, condition on up to three input pins is true.
A block diagram of the programmable logic unit with extensions and closely related peripheral modules (in grey) is shown
in Figure 26-1.

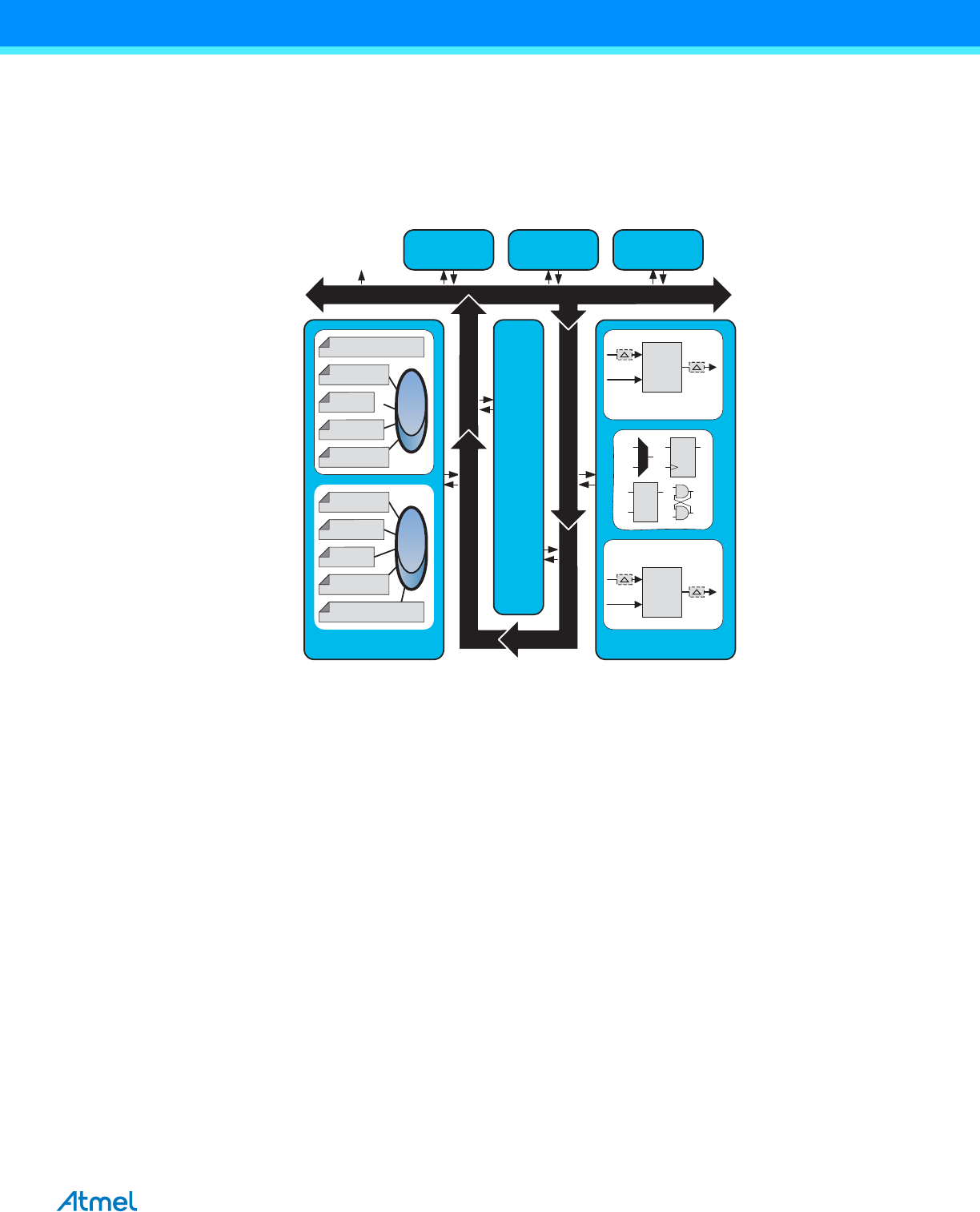

Figure 26-1. XMEGA Custom Logic Module and Closely Related Peripherals
Interrupts
Interconnect Array
Interconnect Array
Glue Logic
LUT1
LUT0
Truth
Table
Truth
Table
D
Q
D
Q
G
Timer/Counter
BTC0
8-bit T/C
Normal
Capture
PWM
One Shot
Periph.Counter
BTC1
One Shot
PWM
Capture
Normal
Periph.Counter
8-bit T/C
Control Registers
Event
System
Port
Pins
USART
