16.3 Output Driver
All port pins (Pxn) have programmable output configuration. The port pins also have configurable slew rate limitation to
reduce electromagnetic emission.
16.3.1 Push-pull

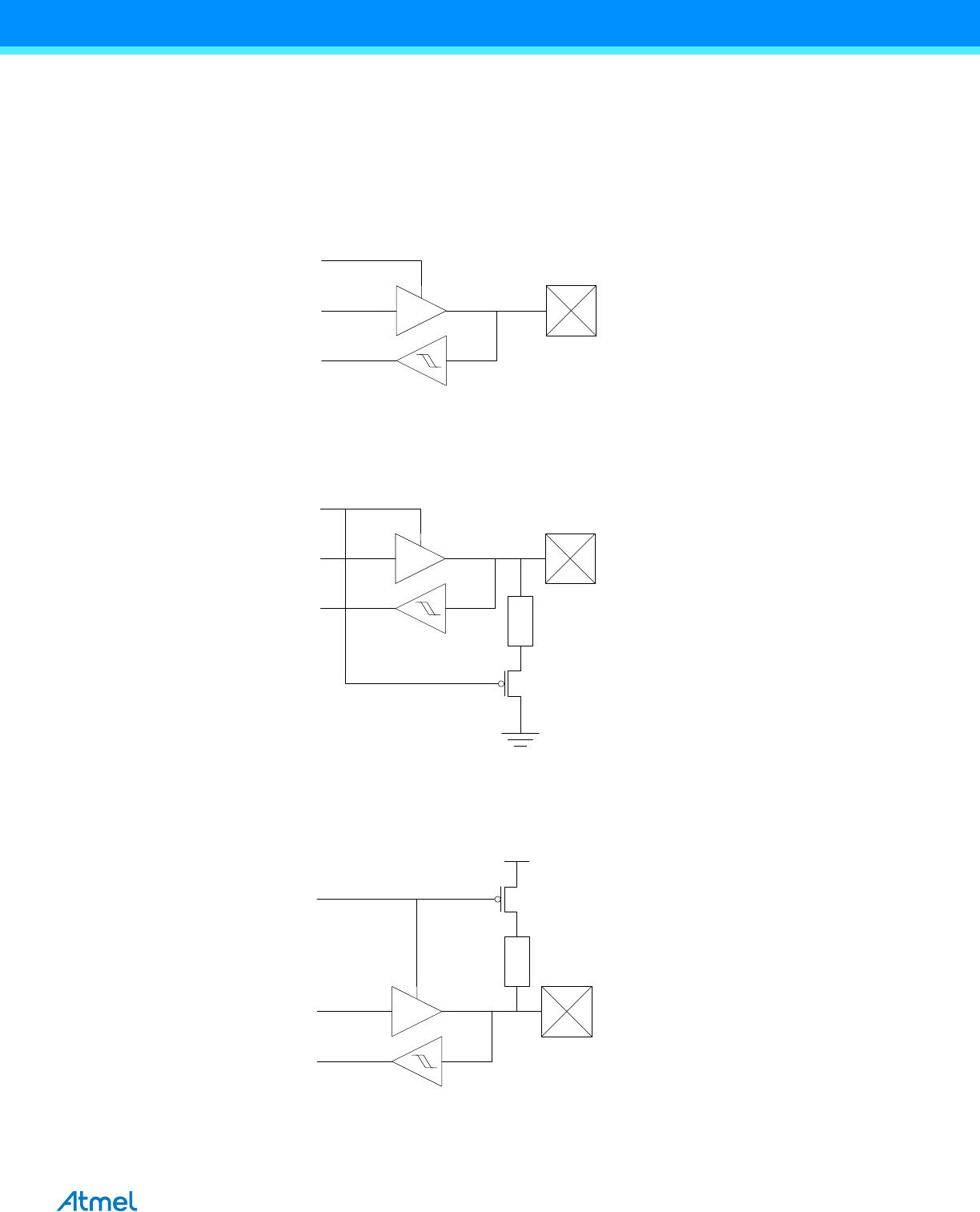

Figure 16-1. I/O Configuration - Totem-pole
16.3.2 Pull-down
Figure 16-2. I/O Configuration - Totem-pole with Pull-down (on input)
16.3.3 Pull-up
Figure 16-3. I/O Configuration - Totem-pole with Pull-up (on input)
INxn
OUTxn
DIRxn
Pxn
INxn
OUTxn
DIRxn
Pxn
INxn
OUTxn
DIRxn
Pxn
