37.10 Oscillator Characteristics
37.10.1 Ultra Low-Power Internal Oscillator

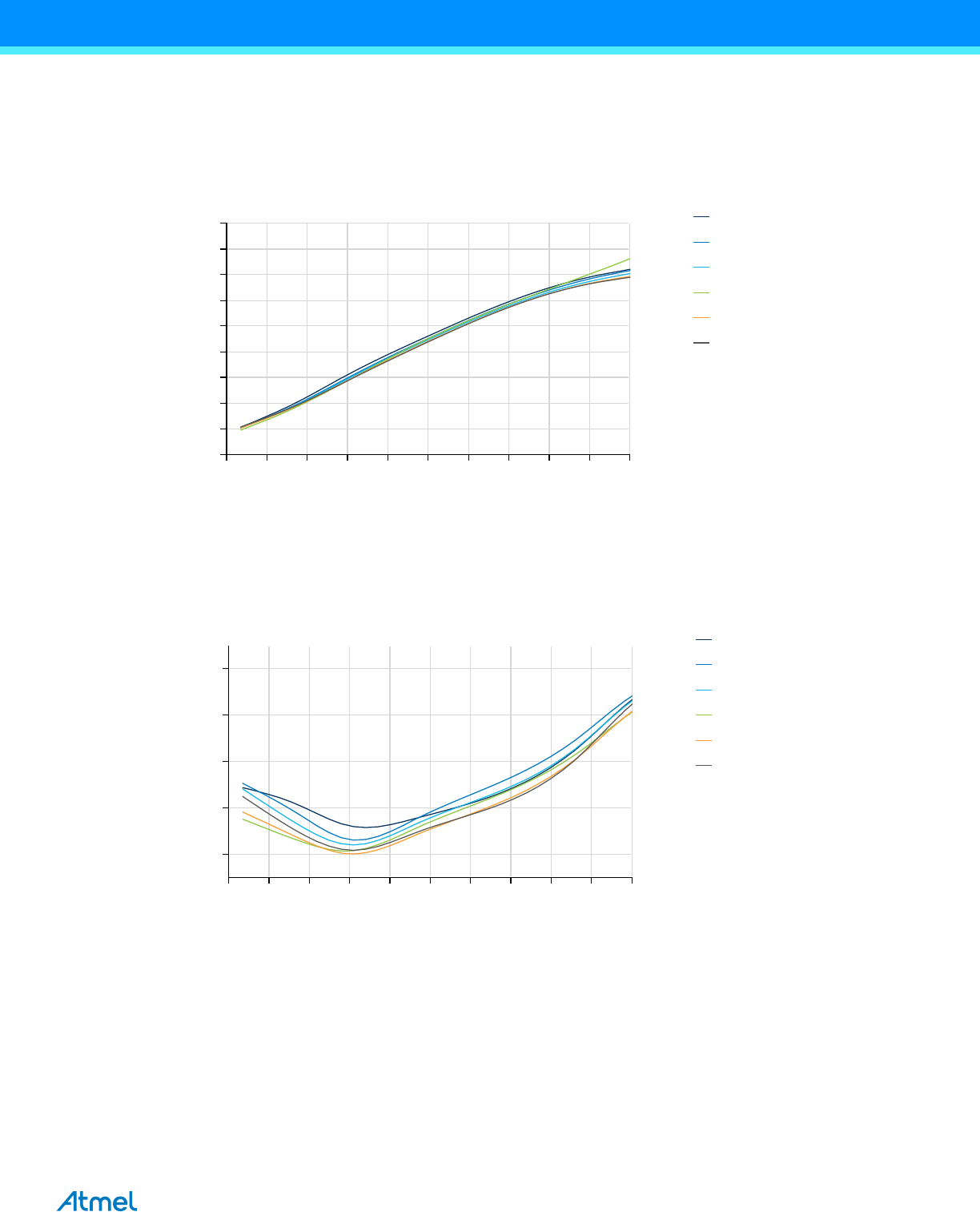

Figure 37-70. Ultra Low-Power Internal Oscillator Frequency vs. Temperature
37.10.2 32.768KHz Internal Oscillator
Figure 37-71. 32.768kHz Internal Oscillator Frequency vs. Temperature
Frequency [kHz]
28
29
30
31
32
33
34
35
36
37
-45 -30 -15 0 15 30 45 60 75 90 105
Temperature [°C]
V_CC_ 1.6
1.8
2.2
2.7
3
3.6
Frequency [kHz]
32.60
32.70
32.80
32.90
33.00
-45 -30 -15 0 15 30 45 60 75 90 105
Temperature [°C]
V_CC_ 1.6
1.8
2.2
2.7
3
3.6
