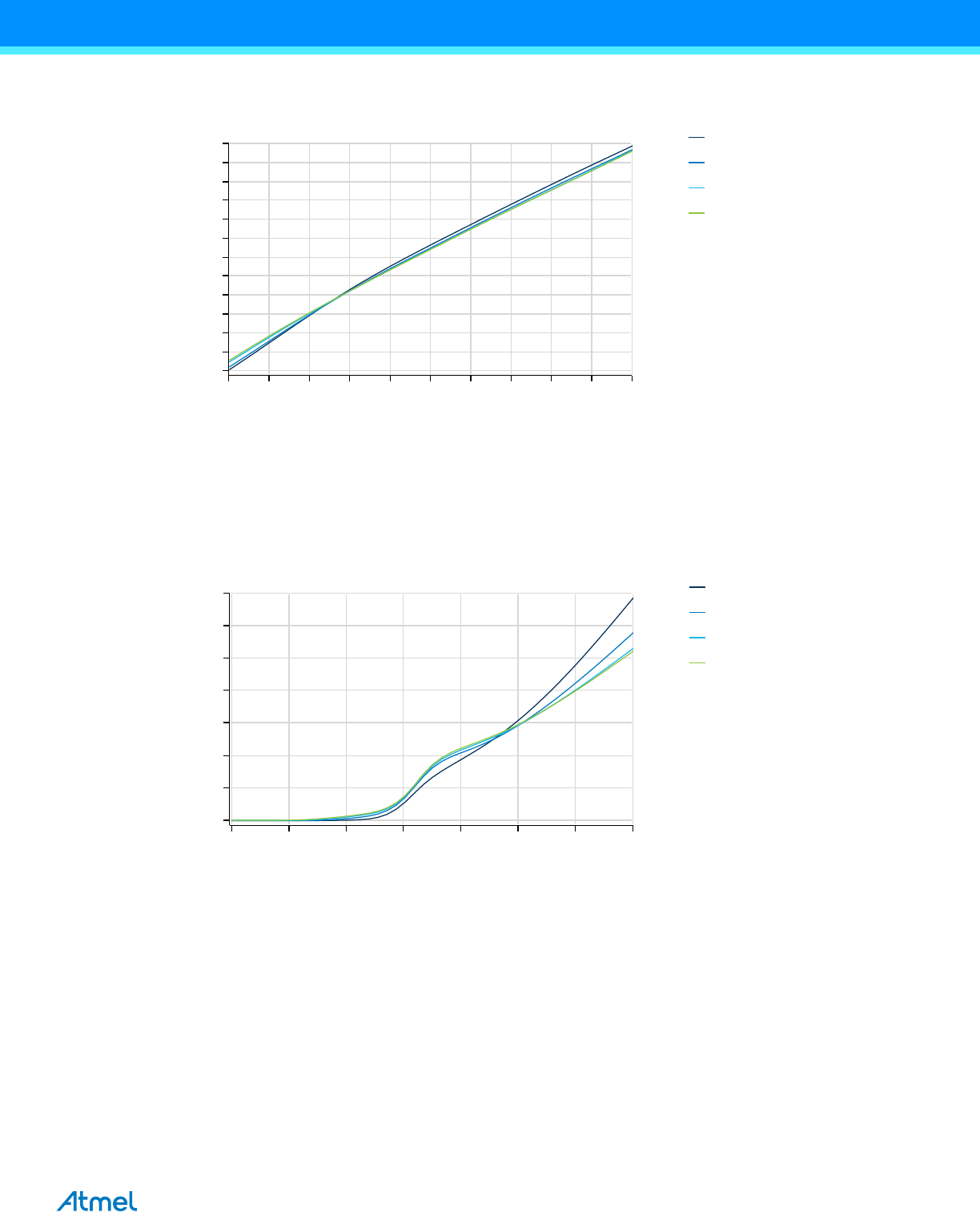

Figure 37-67.Reset Pin Input Threshold Voltage vs. V
CC
V
IL
- Reset pin read as “0”
37.9 Power-on Reset Characteristics
Figure 37-68.Power-on Reset Current Consumption vs. V
CC
BOD level = 3.0V, enabled in continuous mode
V_threshold_ [V]
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.6
Vcc [V]
T [°C] -40
25
85
105
ICC [uA]
0
100
200
300
400
500
600
700
0.0 0.4 0.8 1.2 1.6 2.0 2.4 2.8
V_CC_ [V]
T [°C] -40
25
85
105
