XMEGA E5 [DATASHEET]
Atmel-8153J–AVR-ATxmega8E5-ATxmega16E5-ATxmega32E5_Datasheet–11/2014

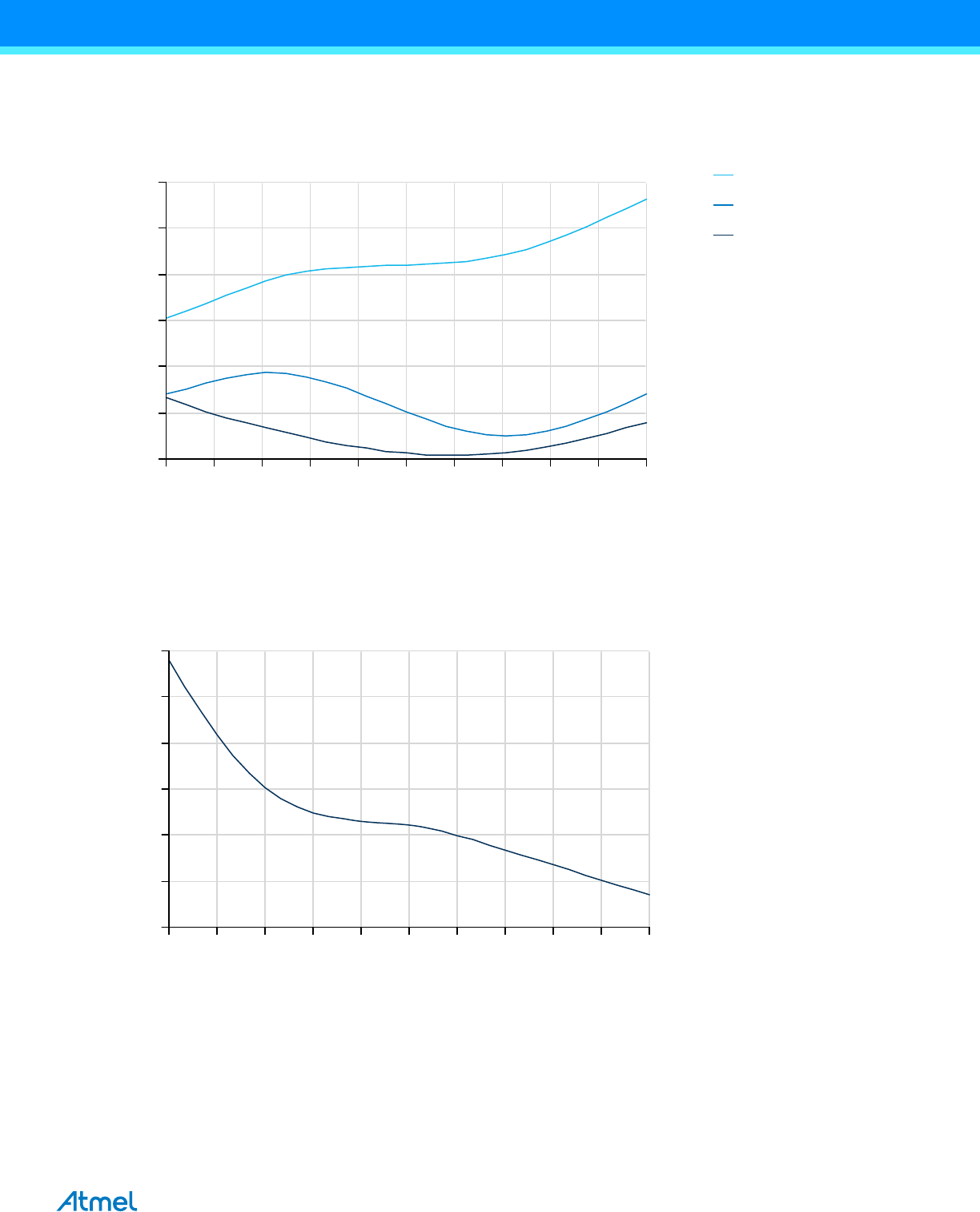

Figure 37-39.ADC INL Error vs. V
CC
T = 25
C, V
REF
= 1.0V
Figure 37-40.ADC DNL Error vs. V
REF
SE Unsigned mode, T=25
C, V
CC
= 3.6V, external reference
INL [LSB]
0.60
0.80
1.00
1.20
1.40
1.60
1.80
1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.6
Vcc [V]
Mode
Differential mode
Single-ended signed mode
Single-ended unsigned mode
DNL [LSB]
0.45
0.50
0.55
0.60
0.65
0.70
0.75
1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0
Vref [V]
