Owner’s ManualAP-C15D Power Conditioner
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]

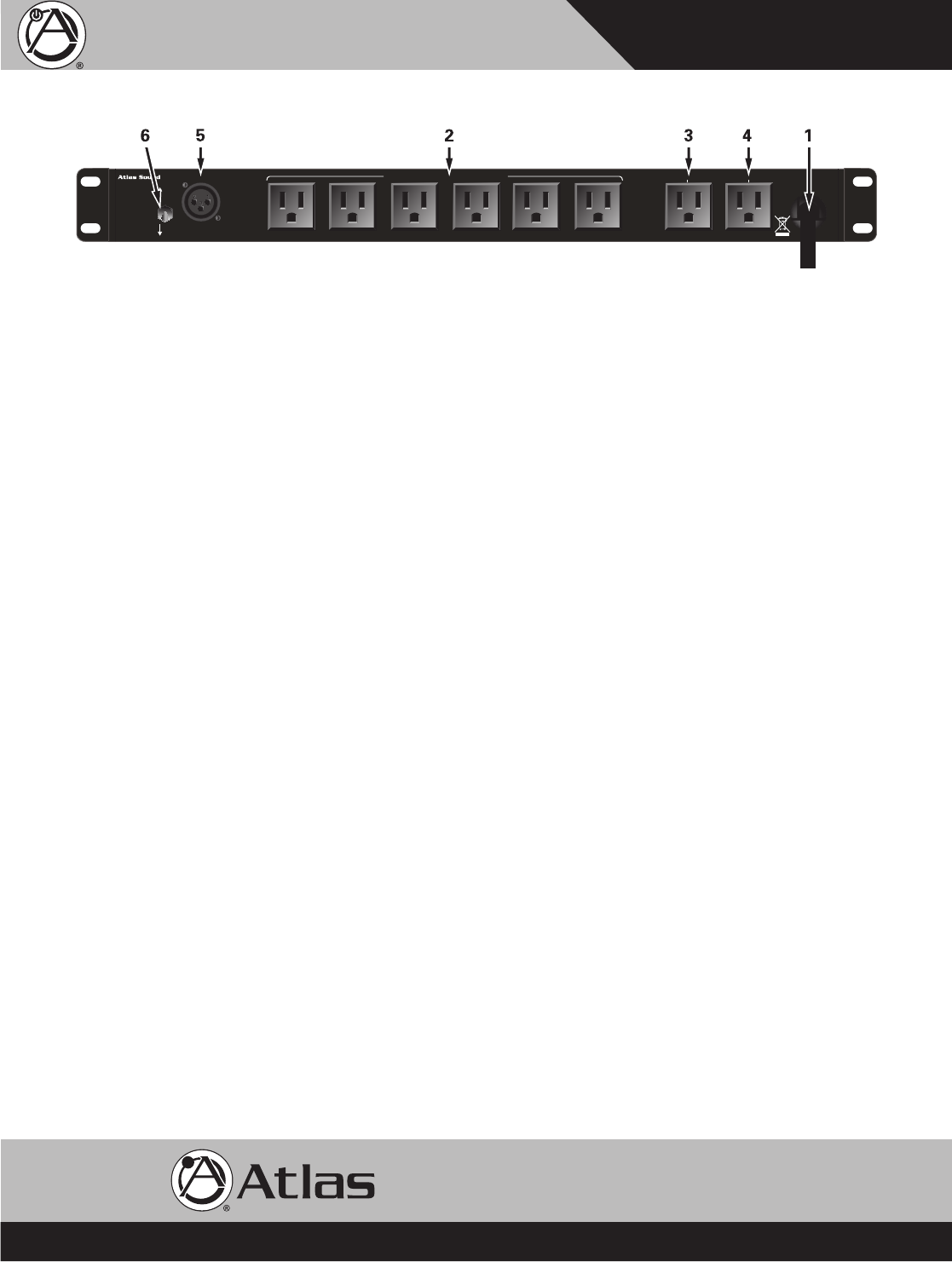

Rear Panel Features
1. AC Mains Input – Connect the 9' (3m) power cord to a 15A 120VAC outlet to provide power to the AP-C15D.
2. AC Filtered Outlets – The five AC outlets are “Live” when the power switch is activated. These outlets are recommended for
products such as Computers, Modems, Routers, DSP Processors, Cable/SAT, DVD, or CRT TVs. These outlets have a special filter
circuit that is optimized to reduce interference to your Digital and Analog components. The total maximum draw for this section is
10A and the total current draw for the AP-C15D is 15A.
3. AC High Power Outlet – This outlet is designed to deliver maximum current to power hungry components like amplifiers and pro-
jectors. It does not harm low power consuming components when connected to this outlet.
4. Unswitched AC Outlet – This 120VAC outlet is always live when the AP-C15D power cord is plugged into an AC mains power
source and voltage is present. If voltage is present at the outlets it will be displayed on the AC Mains Meter. Note: The AC mains
power switch does not affect the Unswitched AC Outlets. The Unswitched Outlets are protected by the surge protection circuitry
but will not be shut off by the EVS circuit.
5. XLR Light Socket – A 12VDC XLR light socket provides power for the optional ECS-GNL light.
6. Light Socket Power Switch – This switch turns the XLR light socket ON / OFF.
Installation
Before installing we strongly suggest you read the entire manual to ensure you benefit from all the features of the AP-C15D. The
AP-C15D can be placed on a shelf or rack mounted in a standard 19" width rack. Placement within a rack is not critical but the rack
should be within 6' of a dedicated 15A AC outlet. Always make sure the 15A outlet is properly inspected by a certified electrician prior
to connecting the AP-C15D. Below are a few installation tips.
• After plugging the AP-C15D into a 15A AC Mains outlet inspect the Wiring Fault LED for illumination. The LED should not be on.
• Inspect the equipment that is to be plugged into the AP-C15D to ensure it does not exceed 15A total amperage draw.
• Divide the equipment into two categories. Pick the outlets that match the outlets equipment use.
1601 JackMcKay Blvd • Ennis, TX 75119
www.atlassound.com
On
Off
Lamp
Filtered Outlets 120V, 60Hz, 10A MAX, 1200W
High Current
120V 10A, Unfiltered
Unswitched
120V 10A
AC 120V 60Hz
1440W, 12A
