Owner’s ManualAP-C15D Power Conditioner
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Key Features
• 10 Total Outlets Are Provided
• 8 Rear Panel Outlets
• 2 Front Panel and 1 Rear Panel Unswitched Convenience Outlets
• RFI Noise Filtering to Reduce Radio Frequency Interference
• EMI To Reduce Electromagnetic Interference
• Dual Clamping Spike & Surge Suppression, DCS Circuitry
• Front Panel Digital AC Mains Voltmeter
• LED Indication of Reversed “Live” and “Neutral” Wiring
• Abnormal AC Line Voltage Indicator for Voltages Between 101V–107V or 128V–132V
• Extreme Voltage Shutdown (EVS) Below 101V or Above 132V AC Line
• Circuit Breaker Protection @ 15A Indicated by “Breaker Open” Indicator
• Front Mounted Pull-out LED Light With 2-Position Dimmer
• Rear Mounted XLR Connector for 12VDC LED Lamp
Applications
The AP-C15D was designed to be flexible with features that allow it to be used in a variety of applications. The AP-C15D can be used
solely for protection against lightning strikes or voltage surges or for AC Mains Voltage Monitoring. If fuzzy video or frequent static pops
occur, the AC power conditioning will eliminate or reduce those inconveniences. The following are just a few examples of applications
the AP-C15D can be used:
• Restaurants
• Houses of Worship
• Schools
• Home Theaters
• Office Buildings
• Sports Bars

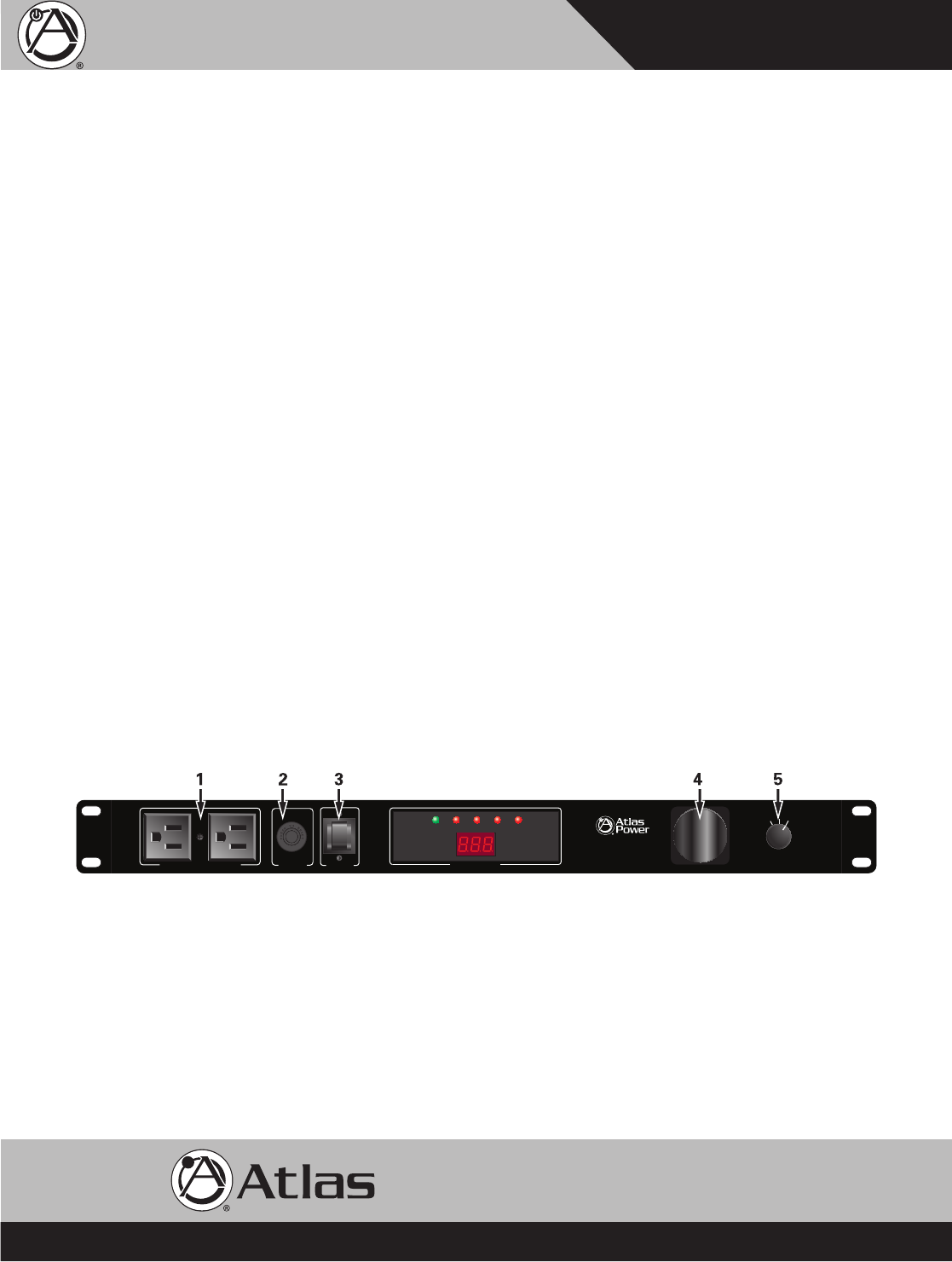

Front Panel Features
1. Unswitched AC Outlet – The two 120VAC outlets are always live when the AP-C15D power cord is plugged into an AC mains
power source and voltage is present. If voltage is present at the outlets, it will be displayed on the AC Mains Meter. Note: The AC
mains power switch does not affect the Unswitched AC Outlets. The Unswitched Outlets are protected by the surge protection
circuitry, but will not be shut off by the EVS circuit.
2. AC Mains Breaker – The 15A rated breaker will open if the combined draw of all AC outlets exceeds 15A. Note: The breakers are
designed to exceed their rating for a short period of time. If the breaker is tripped, to reset you must first remove the load from the
AP-C15D and push the center button in on the breaker.
3. Power Switch – To turn the AP-C15D on or off, press the switch to the ON or OFF position.
4. Pull Out Light – The LED light is designed to be pulled out when needed.
5. Pull Out Light Dimmer Switch – The Pull Out Light can be turned “On” or “Off” by this switch. There are also two brightness
settings.
6. AC Mains Function Display
Unswitched Outlets 120V 10A
Circuit
Breaker
Power
Power
On
Wiring
Fault
Breaker
Open
AC
Fault
Abnormal
Voltage
AC Mains Voltage
AP-C15D
Power Conditioner
Off
Low
High
15A
