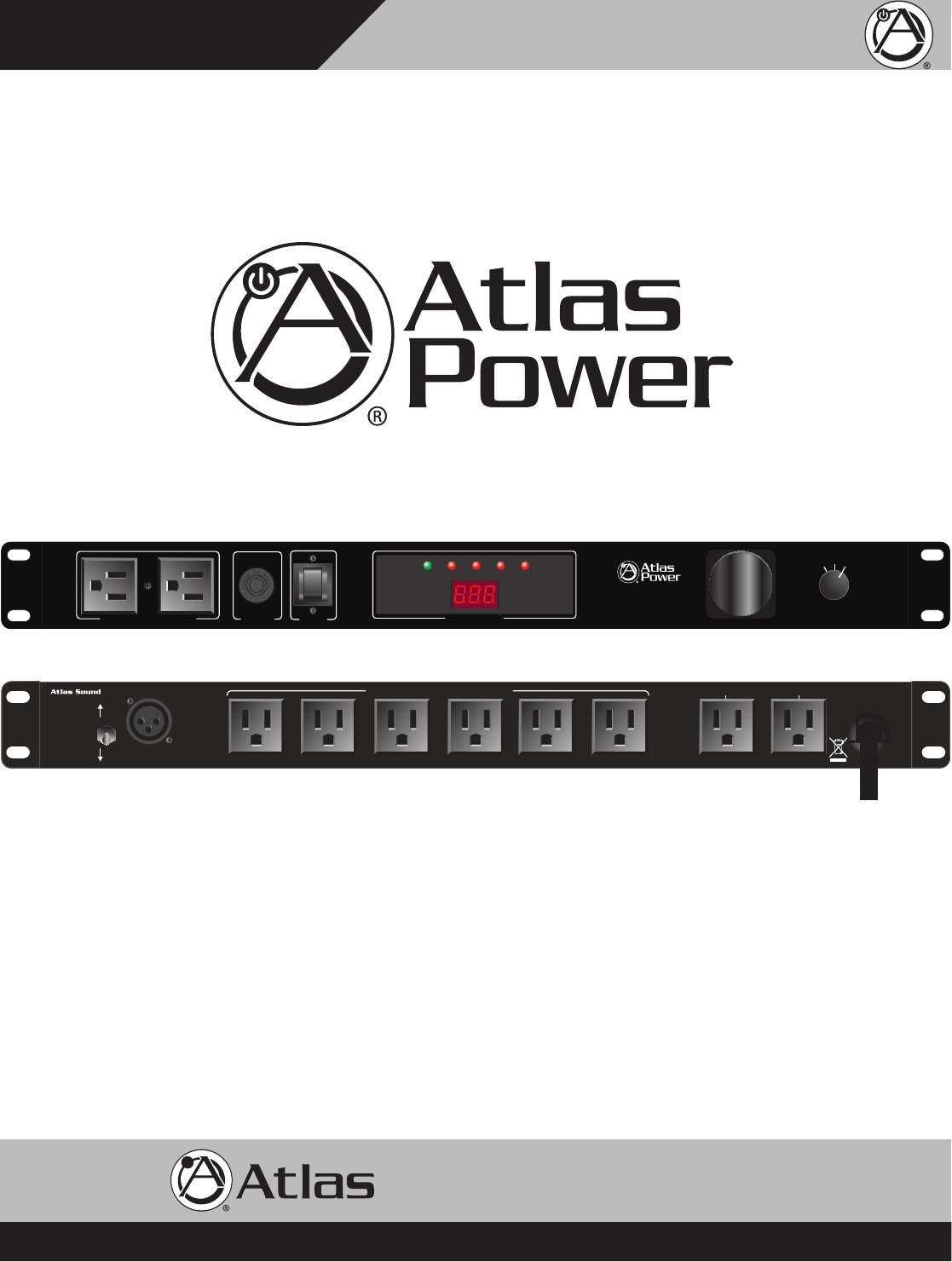

Owner’s Manual AP-C15D Power Conditioner 15A Off Power On Wiring Fault Breaker Open AC Fault Low High Abnormal Voltage AP-C15D Power Conditioner Unswitched Outlets 120V 10A Lamp Circuit Breaker Power AC Mains Voltage Filtered Outlets 120V, 60Hz, 10A MAX, 1200W High Current 120V 10A, Unfiltered 1601 JackMcKay Blvd • Ennis, TX 75119 www.atlassound.com Unswitched 120V 10A AC 120V 60Hz 1440W, 12A On Off AP-C15D Power Conditioner 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
AP-C15D Power Conditioner Owner’s Manual Table of Contents Safety Instructions ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 3 Introduction �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 5 Key Features ����������������������������������������������
fier A35 d 35W Engineered ound HINA Owner’s Manual AP-C15D Power Conditioner Safety Instructions The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION ´ RISQUE DE DECHARGE ELECTRIQUE -NE PAS OUVRIR.
AP-C15D Power Conditioner Owner’s Manual CAUTION – When Installing the Product • Plugging in or unplugging the power cord with wet hands may result in electric shock. • Never move the unit with the power cord plugged into the wall, as damage to the power cord may result. • When unplugging the cord from the wall, grasp the plug, NOT the cord. • Never install this product in humid or dusty locations, nor in direct sunlight, near sources of heat, or in areas where sooty smoke or steam are present.
Owner’s Manual AP-C15D Power Conditioner Introduction Thank you for purchasing the Atlas Power AP-C15D AC Power Conditioner. The AP-C15D has been designed to meet most installation requirements for AC power distribution and equipment power protection. The 15A compact 1 RU unit AC Mains Voltage can be monitored via the front panel from the precision Digital Volt Meter. To light your rack, the AP-C15D has incorporated a front panel pull-out dimmable LED tube light.
AP-C15D Power Conditioner Owner’s Manual Key Features • 10 Total Outlets Are Provided • 8 Rear Panel Outlets • 2 Front Panel and 1 Rear Panel Unswitched Convenience Outlets • RFI Noise Filtering to Reduce Radio Frequency Interference • EMI To Reduce Electromagnetic Interference • Dual Clamping Spike & Surge Suppression, DCS Circuitry • Front Panel Digital AC Mains Voltmeter • LED Indication of Reversed “Live” and “Neutral” Wiring • Abnormal AC Line Voltage Indicator for Voltages Between 101V–107V
Owner’s Manual AP-C15D Power Conditioner Power On Wiring Fault Breaker Open AC Fault Abnormal Voltage AC Mains Voltage 7. AC Mains Voltage Display – This display will illuminate when the AC Mains power cord is plugged into an AC source. Note: the display has a 1.5% tolerance. 8. Power ON LED – Will illuminate green when the AC Mains Power Switch is in the ON Position. 9.
AP-C15D Power Conditioner Owner’s Manual Rear Panel Features 1601 JackMcKay Blvd • Ennis, TX 75119 www.atlassound.com Lamp Filtered Outlets 120V, 60Hz, 10A MAX, 1200W High Current 120V 10A, Unfiltered Unswitched 120V 10A AC 120V 60Hz 1440W, 12A On Off 1. AC Mains Input – Connect the 9' (3m) power cord to a 15A 120VAC outlet to provide power to the AP-C15D. 2. AC Filtered Outlets – The five AC outlets are “Live” when the power switch is activated.
Owner’s Manual AP-C15D Power Conditioner Troubleshooting Guide Issue: Wiring Fault LED is illuminated. Possible Cause: AC Mains outlet is wired incorrectly. Action Needed: Contact a certified electrician to inspect the building's wiring. Issue: No power to the AC outlets. Possible Cause: Circuit breaker has tripped due to excessive load. Action Needed: Remove one piece of equipment from the AP-C15D, and push the breaker reset tab located on the front panel.
AP-C15D Power Conditioner Owner’s Manual Specifications Type Power Conditioner & Suppressor Load Rating 15A Front Panel Outlets 2 Unswitched Lights 1 Pull Out LED with Dimmer Switch Activation Switch Rocker Circuit Breaker 15A Resettable AC Mains Voltmeter Three Digits, Digital Indicators AC Power On, Abnormal Voltage, AC Fault, Breaker Open, Wiring Fault Rear Panel AC Outlets 8 Outlets total, 6 Filtered, 1 High Power Non-Filtered, 1 Unswitched Connector LED Li
Owner’s Manual AP-C15D Power Conditioner Notes 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 11 – Specifications are subject to change without notice. AtlasSound.
AP-C15D Power Conditioner Owner’s Manual Limited Warranty All products manufactured by Atlas Sound are warranted to the original dealer/installer, industrial or commercial purchaser to be free from defects in material and workmanship and to be in compliance with our published specifications, if any.
