Installation
Selecting the location
in compliance with IEC 60 529 Standard, AS60529:2004
Resistance of the floor
 Capable of withstanding a weight of at least 400 kg (the area under the water
heater)
The place where the appliance is installed must comply with protection index IP X1B
according IEC 60 529 Standard and AS60529:2004 standard and in compliance with electrical wiring
rules of Aus/Nz
Configuration without ducts
semi-ducted
Configuration with ducts
Type of room
 Unheated room at a temperature
above 5° and isolated from the
heated rooms in the dwelling
Recommended room = underground
or semi-underground, a room where
the temperature is higher than 10°C
all year long, well vented location
 Room at least above freezing
 Recommended room = habitable
space (the heat released by the water
heater is not lost), near the exterior
walls
 Do not install near bedrooms to avoid
disturbance by the noise
Examples of rooms
 Garage, boiler room, basement,
laundry room, etc.
 Laundry, cupboard in the hallway, etc.
Volume of the room from
which the air is taken
 > 20m3  > 20m3
Temperature of the room
where the water heater
is installed
 5°C to 35°C, when the water heater
is not working
 1°C to 35°C
Temperature of the
incoming air
 3°C to 35°C  -5°C to 35°C
Height
 > 2m10  > 2m20 with bent outlet
(height of an insulated bend = approx.
300mm)

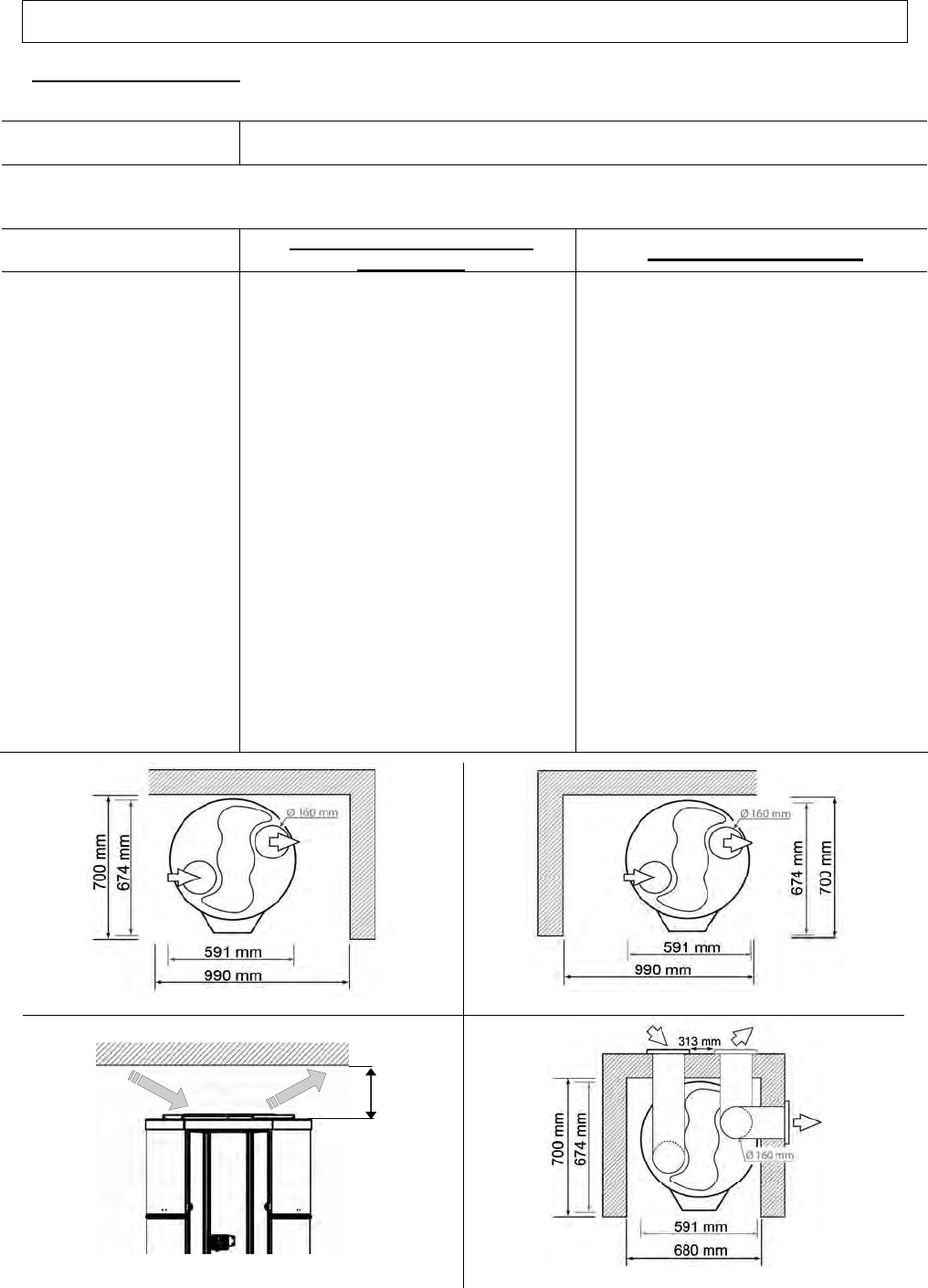

Required surface area
 (591+400) x 700 (l x D). See
diagram below
 The surface must be level
 800 x 800 (l x D). See diagram below
 The surface must be level
Configuration without ducts Configuration without ducts
Configuration without ducts Configuration with ducts
CAUTION : failure to follow the recommendations for installation may result in poor system performance.
200 mm
