Electric connections
Caution: the water heater must be filled with water first, before making the electric
connections (see Getting started section, page 14).
The HPWH must remain connected to the main power supply at all times so that the
operation of the (ACI) anti-corrosion protection of the water heater is ensured.
Electrical work must be carried out by a licensed tradesperson and in accordance with Electrical Wiring
Rules of Aus/NZ. Circuit Isolation and fixed appliance regulations of the Wiring rules shall be complied in
regard to connection to supply, circuit isolation, and protection.
The appliance must be earthed.
Never power the heating element directly.
The safety thermostat fitted to the electric backup must only be repaired in our factory. Failure to obey
this clause will cancel the warranty.

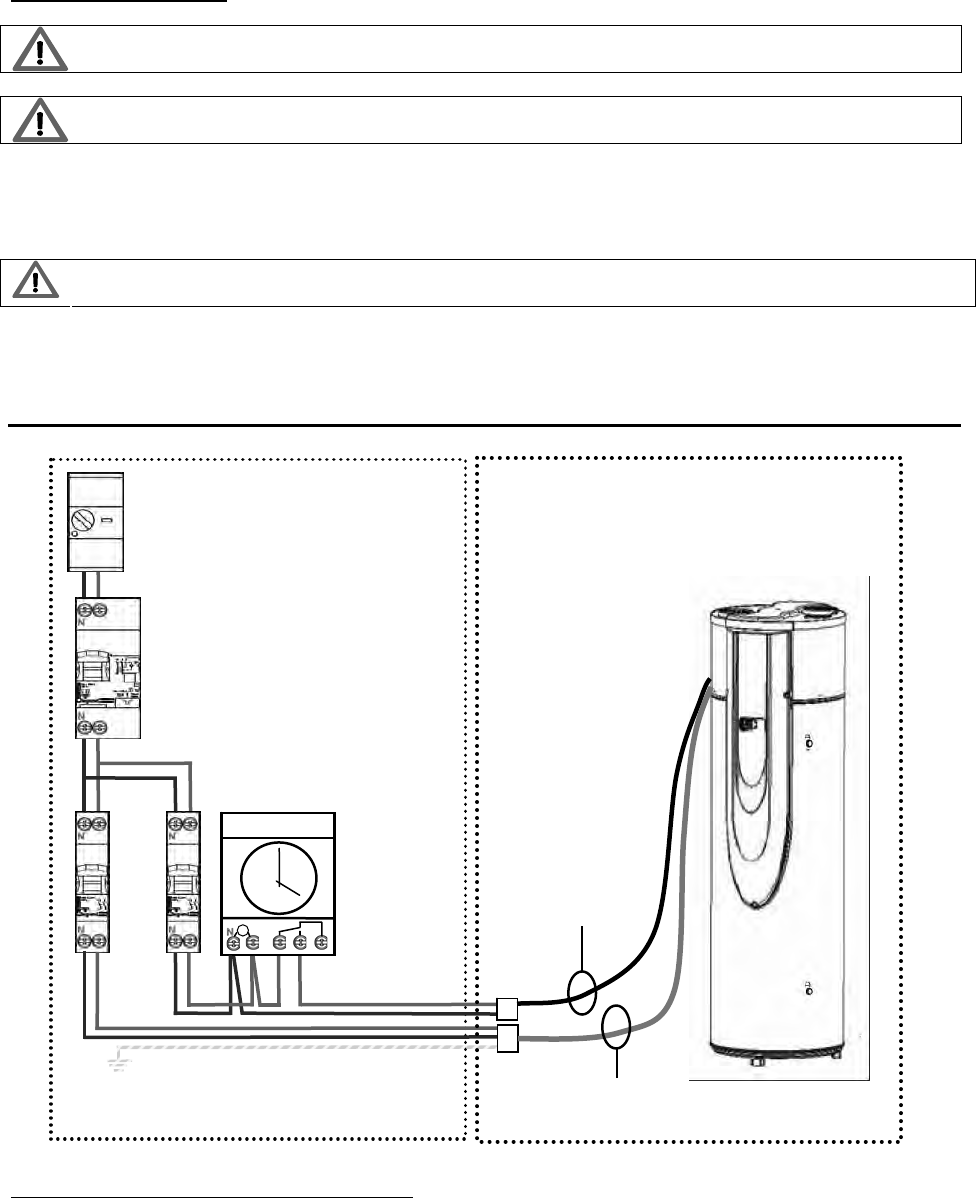

Electric connection using a timer
FOR TIME CLOCK – TIME OF USE TARIFF:
240 volt supply with 2 amp protection connected to the black auxiliary wire and the time clock programmed
in accordance with the time of use tariff hours. Set HCHP parameter to ON, see page 15 setting the
regulation.
Electric
panel
16A
2A
3x1.5 mm²
2x0.75 mm²
Active – red or brown
Neutral – white or blue
M
Timer (*)
(*) This assembly is not universal. Refer to the assembly
instructions of your timer, depending on the model.
