Installation guide

Application Note
Configuring the Dial Plan
Before configuring the Dial Plan, see “Dial Plan Settings” in the Synapse System
Administrator’s Guide (for software 1.10.4 or later) available at
http://telephones.att.com/synapseguides
.
To configure Synapse Dial Plan settings:

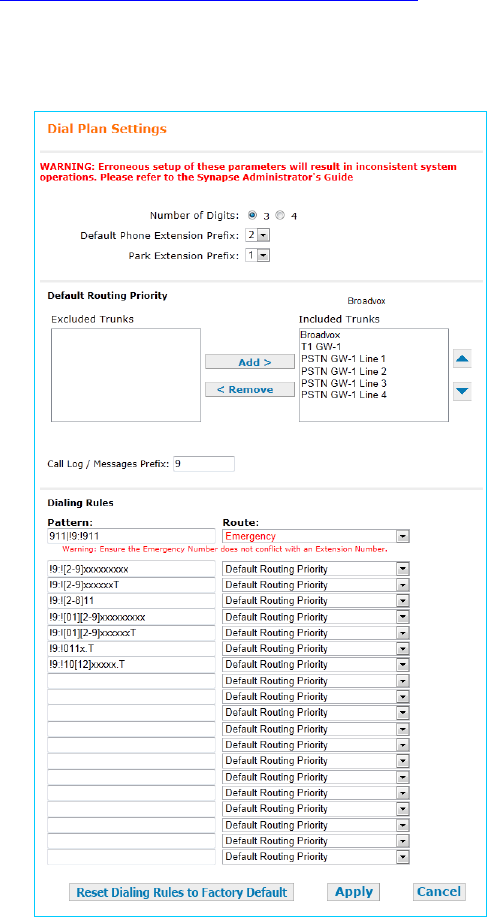

1. In the navigation menu at left, click Dial Plan Settings. The Dial Plan Settings
page appears.
2. Set the Default Routing Priority. Ensure that the Broadvox SIP Account that
you configured is included in the priority list. You can:
 exclude a trunk by selecting it, then clicking < Remove. You may want to
exclude a trunk if it is being used for a fax line or a door phone line, for
example.
 move a trunk up or down the priority list by selecting it, then clicking  or .
13
