Controller to PagePac 20
Connect 0dBm un-balanced output from Controller to
the modular to spade lug cable (green and red).
1
2
3
4
5
6
7
Adjust Controller volume control to full counter
clockwise position.
Connect Controller zone contact closure output to the
modular to spade lug cable (yellow and black).
Plug the 4-connector cable into PagePac 20 “Page
Input” and to the modular to spade lug cable.
Connect audio output cable from PagePac 20 to
Controller Amplified Audio input terminals.
Connect host telephone system input to Controller.
Plug power pack connector into Controller.
OUTPUT CONTACT
CLOSURE SETTING
ON ZONE OPTION
SWITCH
ADJUST OUTPUT LEVEL
VOLUME CONTROL
TO THE FULL COUNTER
CLOCKWISE POSITION
SELF-POWERED
CONTROLLER
CONTACT CLOSURE OUTPUT
CONTACT CLOSURE INPUT
AMPLIFIED AUDIO OUTPUT
CONNECT TO PIN 8
OF J3 or GND.
TO HOST
TELEPHONE
SYSTEM
16.5 VAC
POWER
MODULE
600 OHM (0 dBm)
OUTPUT IMPEDANCE
UNBALANCED
RED
YELLOW
BLACK
GREEN
MODULAR TO
SPADE LUG CABLE
ETHER OUTPUT
CAN BE USED
REAR
PAGEPAC 20
FRONT

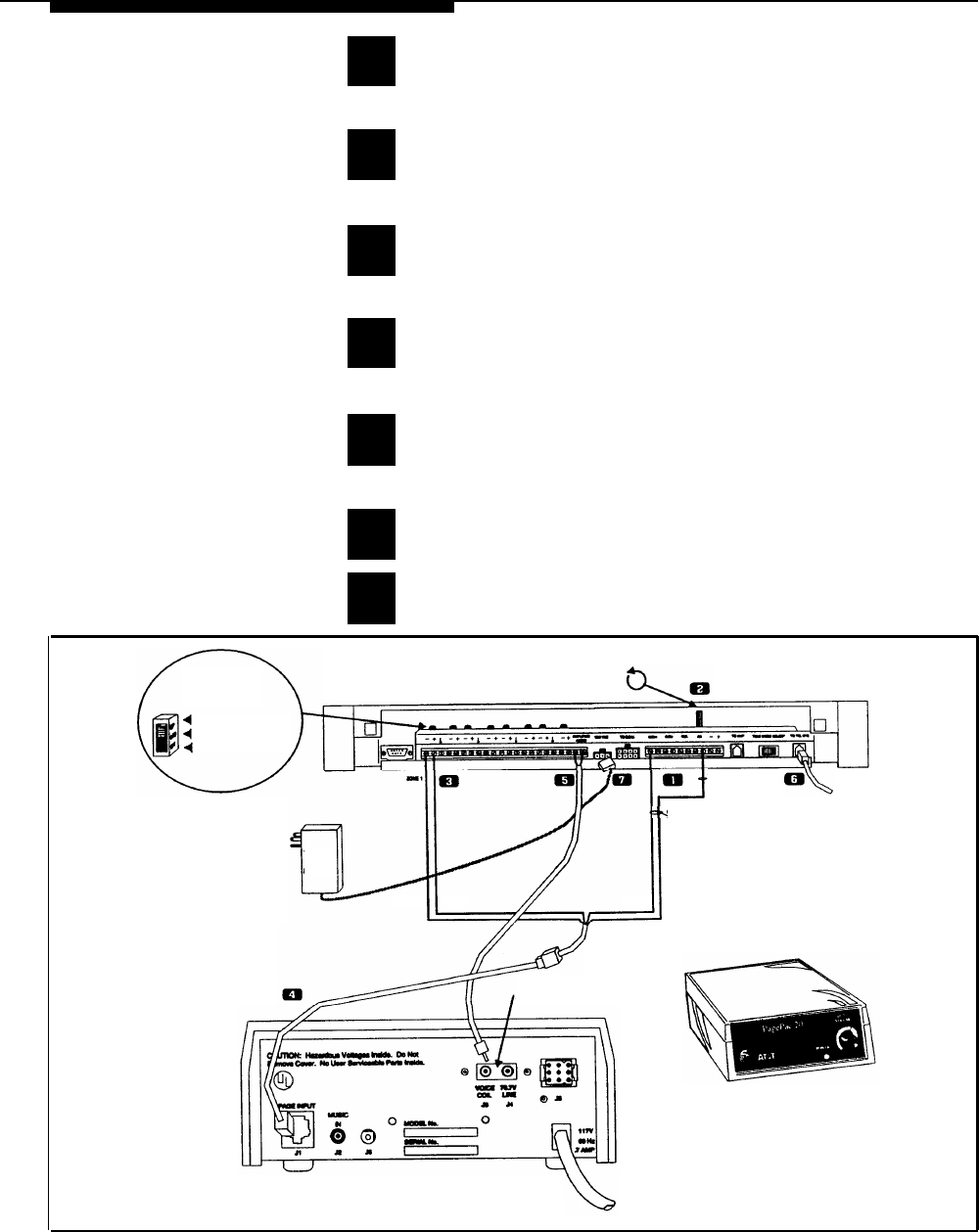

Figure 20. Self-powered Controller Connected to PagePac 20.
