B-26 SYNCHRONIZATION OF DIGITAL FACILITIES
_ ___________________________________________________________________________________________________________________________
_ ___________________________________________________________________________________________________________________________
_ ___________________________________________________________________________________________________________________________
RULE 7:
The number of nodes receiving synchronization reference from any given node should be minimized.
EXAMPLE FOR RULE 7
Figure B-19, Excessive Synchronization from One Node, shows an excess of synchronization from one
node. If transmission facility linking nodes A-B fails, then nodes B, D, E, and F will lose their
synchronization. However, if this same facility fails in figure B-20, Minimized Synchronization from One
Node, only nodes B, D, and E will lose synchronization. Node F remains synchronized to the network.
With few exceptions, it is not possible to engineer a synchronization network that will satisfy all seven
rules. In general, rules 1 through 3 apply in all cases. For rules 4 through 7, use those rules that apply to
your specific network and try to minimize outages based on the cases presented in the examples for each of
these rules.
. . . . . . . . . . . . . .
PRIMARY FREQUENCY REFERENCE
DIGITAL TRANSMISSION FACILITY
SECONDARY (BACKUP) FREQUENCY REFERENCE
F
C B
A
E
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D

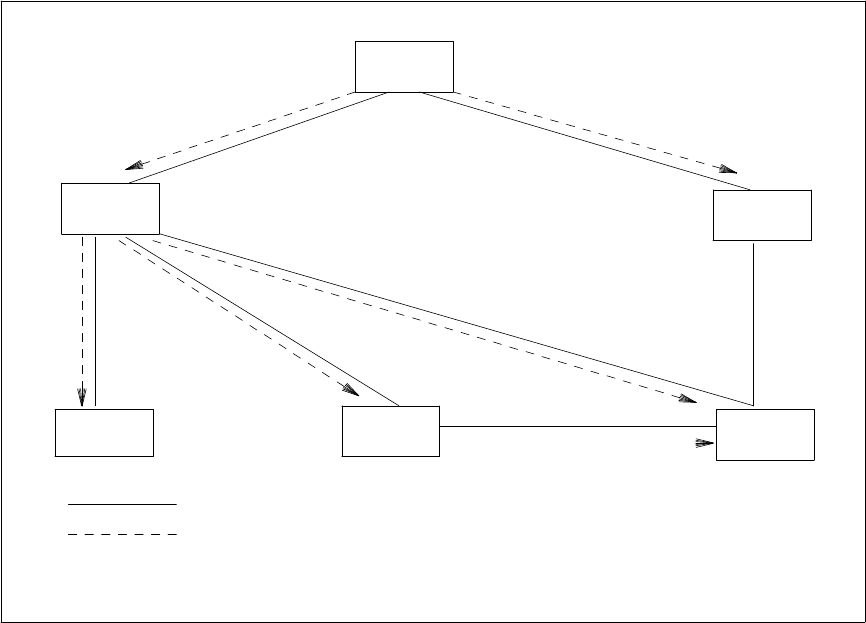

Figure B-19. Excessive Synchronization from One Node
