DISTRIBUTED COMMUNICATIONS SYSTEM (DCS) 6-9

_ ______________________________________________________________________________________

RS232

MTDM

DCP

TN764

(DIGITAL LINE)

TN760

(TIE TRUNK)

TN722

OR TN767

(DS1)

TN764

(DIGITAL LINE)

TN760

(TIE TRUNK)

TN722

OR TN767

(DS1)

MODEM

SYSTEM 75/G1 SYSTEM 75/G1

SIGNALING CHANNEL

ANALOG OR DS1 VOICE CHANNEL

RS232

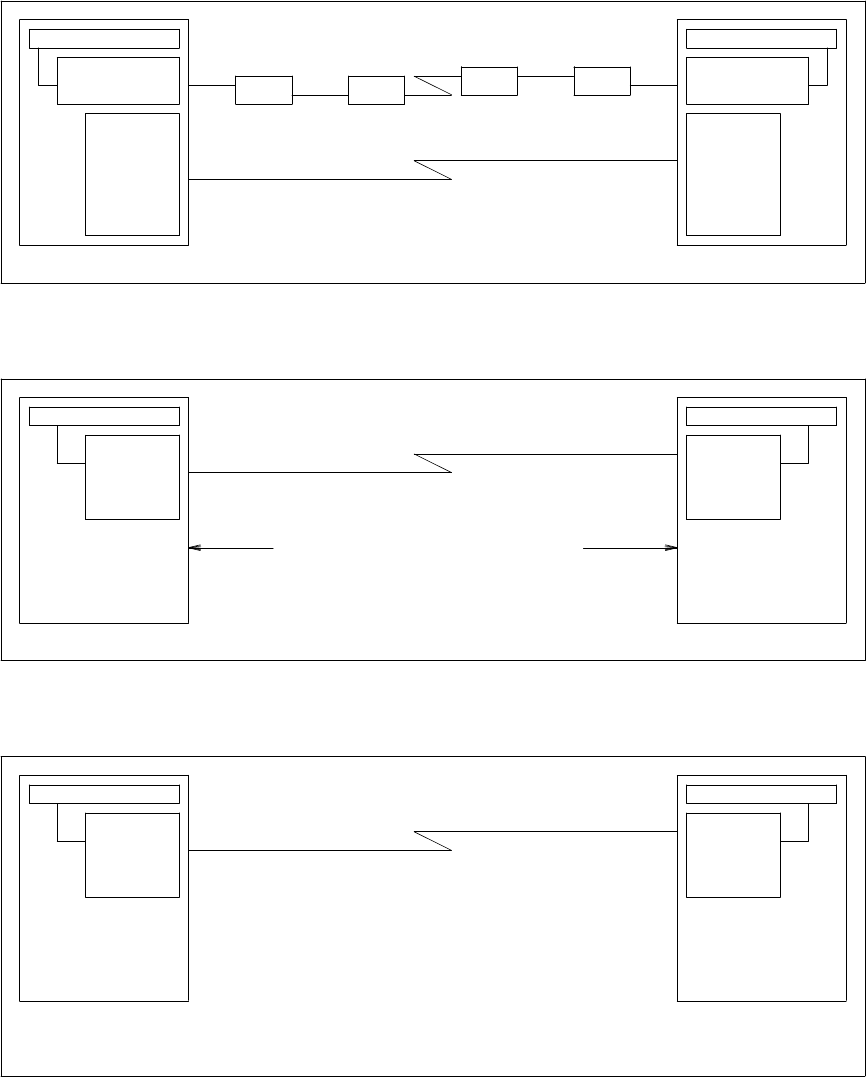

Figure 6-7. Long Haul Analog Signaling: System 75/G1 to System 75/G1 Via Modem

24th CHANNEL SIGNALING

USING AVD DS1

TN722

OR TN767

(DS1)

TN722

OR TN767

(DS1)

SYSTEM 75/G1 SYSTEM 75/G1

CSU MAY BE REQ’D AT BOTH ENDS

IF COMMON CARRIER USED

Figure 6-8. Long Haul Digital Signaling: System 75/G1 to System 75/G1 Via AVD DS1

TN767

(PRI)

SYSTEM 75/G1 SYSTEM 75/G1

*ONE OF THE 23 B-CHANNELS IS USED FOR DCS SIGNALING: THE REMAINING 22 CHANNELS CAN BE USED FOR VOICE.

ISDN PRI*

TN767

(PRI)

Figure 6-9. Long Haul Digital Signaling: System 75/G1 to System 75/G1 Via ISDN PRI
