5.2 Real-time BCM System Status LED Displays
AdministrationÆ System LED Status Æ
The BCM200/400 front panel LED displays can be viewed remotely to determine
certain critical components. The following are some LED indications that can be
viewed remotely with the NCM Unified Manager:
• Power
• Hard drive (HDD)
• Multi-service Card (MSC)
• Modem
• Ethernet ports (NIC)
• System temperature
• Fan indications

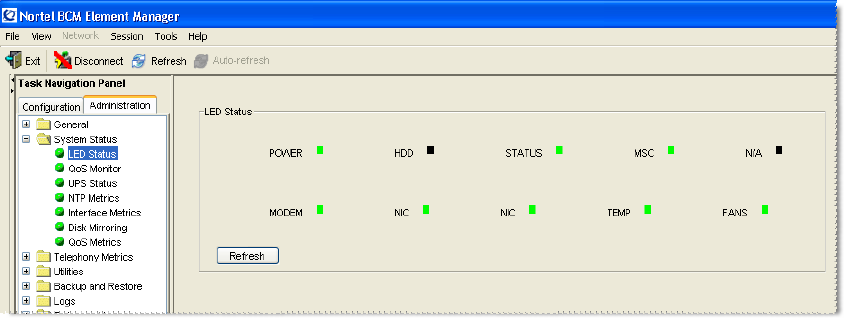

Figure 24: Front Panel LED Display
Using the Element Manager “System Status” tab, you can monitor overall system
performance and other performance-related information. You monitor system
status using the following tools:
• LED Status
• QoS Monitor
• UPS Status
• NTP Metrics
• Interface Metrics
• Disk Mirroring
• QoS Metrics
