instances of the BCM Monitor application can be used on a single PC to monitor

several remote BCM systems at the same time.

Backward version compatibility is supported.

All of the registered IP devices can be viewed with the BCM Monitor. The screen

shot below depicts IP Phone type, DN number and IP address of each registered

IP phone. Additionally, if the device is active on a call the RTP session

information is also displayed.

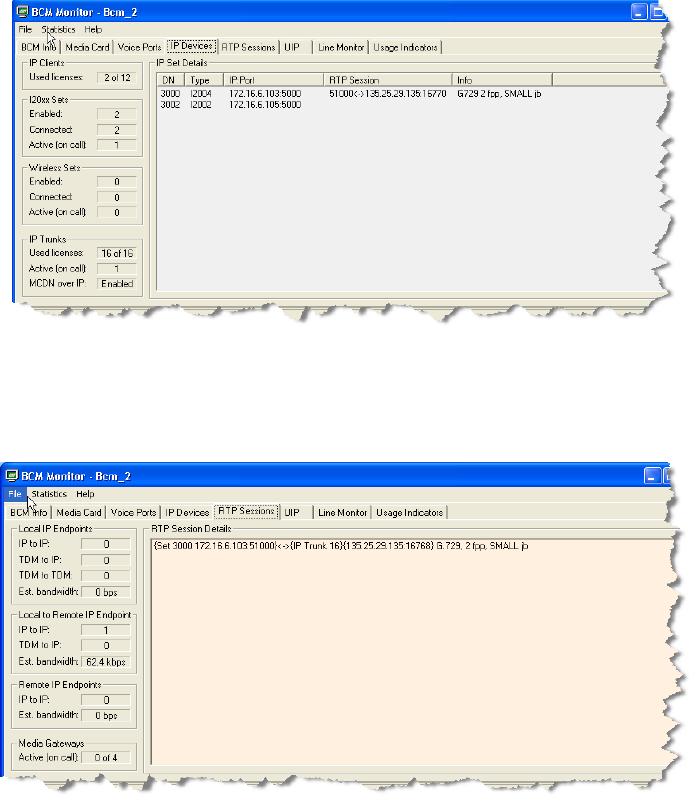

Figure 20: IP Device Listing

The end-to-end RTP sessions per IP call can also be displayed with the BCM

Manager. The example below depicts an end-to-end call.

Figure 21: RTP Session Information

The BCM Monitor can be used to monitor incoming and outgoing trunks to

determine if trunks are being busy or if they are idle. The example below depicts

utilized lines used by local and remote telephone/DN numbers.
