4.8 Configuring IP Phone LCD Screen to Display DID Number
ConfigurationÆ Telephony Æ LinesÆ Target LinesÆ Line 241
To display the DID number on the IP phone LCD screen; select Line 241 than go
to the “Parameters” tab. In our example below, enter 3683476 in the “Name”
field and then select “public” as the line type from the drop down menu.

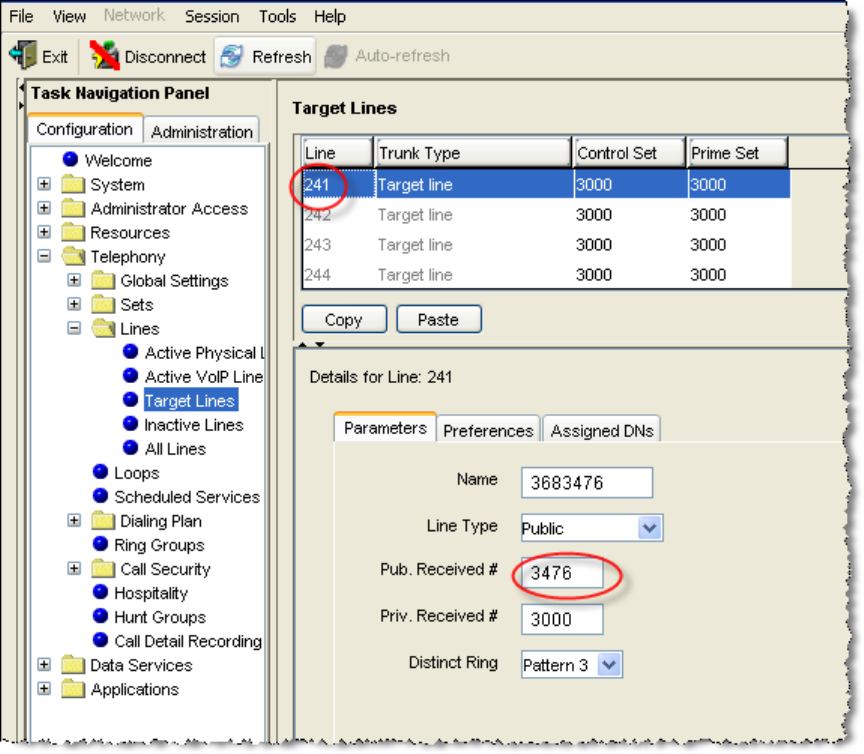

Figure 18: Displaying DID Number on IP Set LCD
