4.6 Configuring Outgoing Calls from BCM to AT&T IP Flex Reach

ConfigurationÆ Telephony Æ Sets Æ All DNs Æ

First locate the desired private DN number that you want to assign the public

DID number under the “Line Access” tab. In this case we have selected “DN

3000”. At this point, select the “Properties” tab under the “Details” window.

We will now associate the private DN number with the DID number. In the

example below; 3000 is entered in the “Private OLI” field and 7323683476 is

entered in the “Public OLI” field. This example enables “calling number

translation” (outgoing) for this particular DN number.

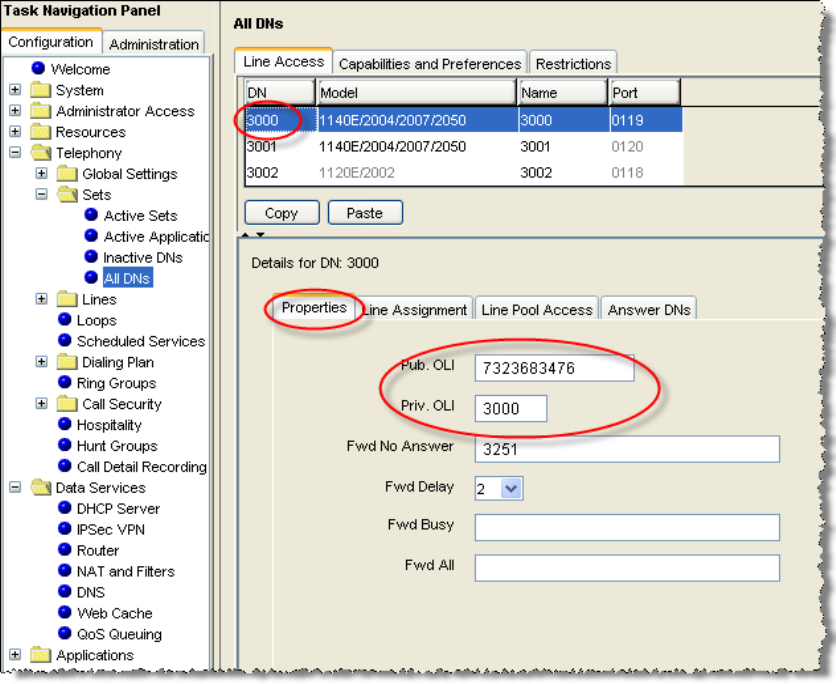

Figure 16: Configuring DID for Outgoing Calls
