WebSTAR DPR2320 and EPR2320 Gateway Cable Modems User’s Guide
6

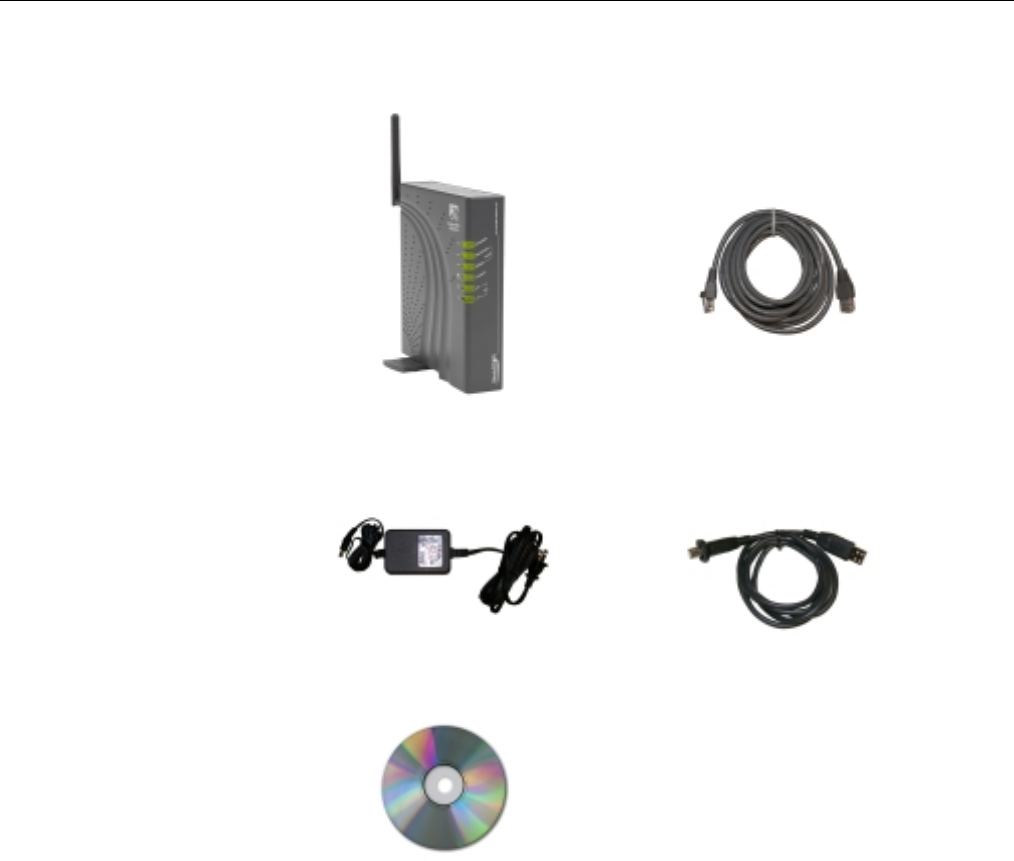

What’s In the Carton?
When you receive your gateway cable modem, you should check the equipment and accessories to verify that
each item is in the carton and that each item is undamaged. The carton contains the following items:
One Model DPR2320 or EPR2320
Gateway Cable Modem with
detachable antenna
One Ethernet cable (CAT5/RJ-45)
One power adapter with power cord
One USB cable
One CD-ROM containing the user’s
guide and the USB drivers
If any of these items are missing or damaged, please contact your cable service
provider for assistance.
You will need an optional cable signal splitter and additional standard RF coaxial
cables if you want to connect a VCR, a Digital Home Communications Terminal
(DHCT) or a set-top converter, or a TV to the same cable connection as your
cable modem.
