ASUS RS700-E7/RS4-C 4-15

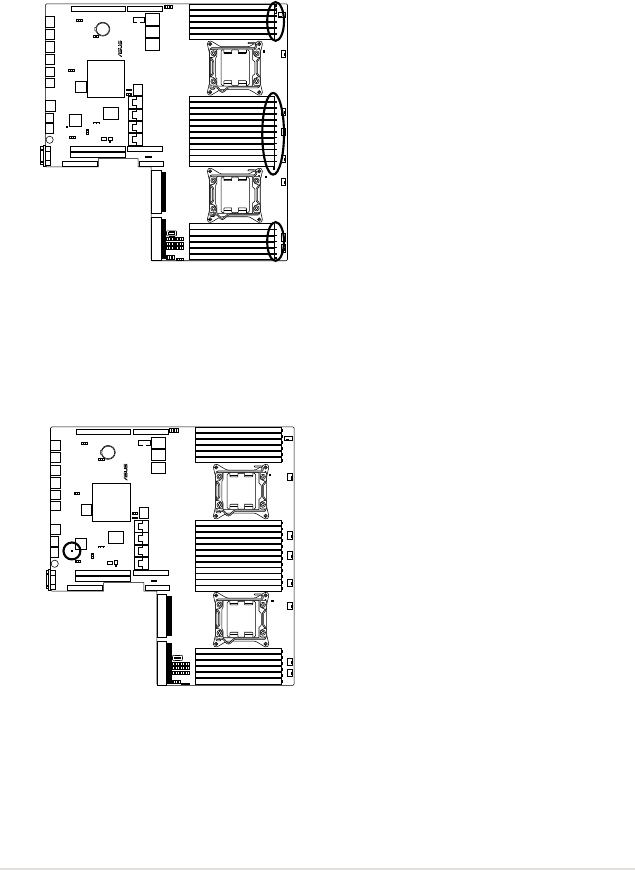

3. DIMM warning LED (ERR_DIMMA1-3, ERR_DIMMB1-3, ERR_DIMMC1-3,
ERR_DIMMD1-4, ERR_DIMME1-3, ERR_DIMMF1-3, ERR_DIMMG1-3,
ERR_DIMMH1-3)
The DIMM warning LEDs light up to indicate that an impending failure of the
corresponding DIMM.
®
Z9PP-D24
Z9PP-D24 ERR DIMM LED
®
Z9PP-D24
Z9PP-D24 BMC LED
4. BMC LED (BMC_LED)
The BMC LED light up to indicate that enabled the on-board BMC.
