ASUS RS700-E7/RS4-C 4-11
7. System fan connectors (4-pin FAN1/2/3/4/5/6/7/8)
The fan connectors support cooling fans of 0.8A–1.0A (12 W max.) or a
total of 6.4 A–8.0 A (96 W max.) at +12V. Connect the fan cables to the fan
connectors on the motherboard, making sure that the black wire of each
cable matches the ground pin of the connector.
DO NOT forget to connect the fan cables to the fan connectors. Insufcient air
ow inside the system may damage the motherboard components. These are
not jumpers! DO NOT place jumper caps on the fan connectors!
®
Z9PP-D24
FAN1

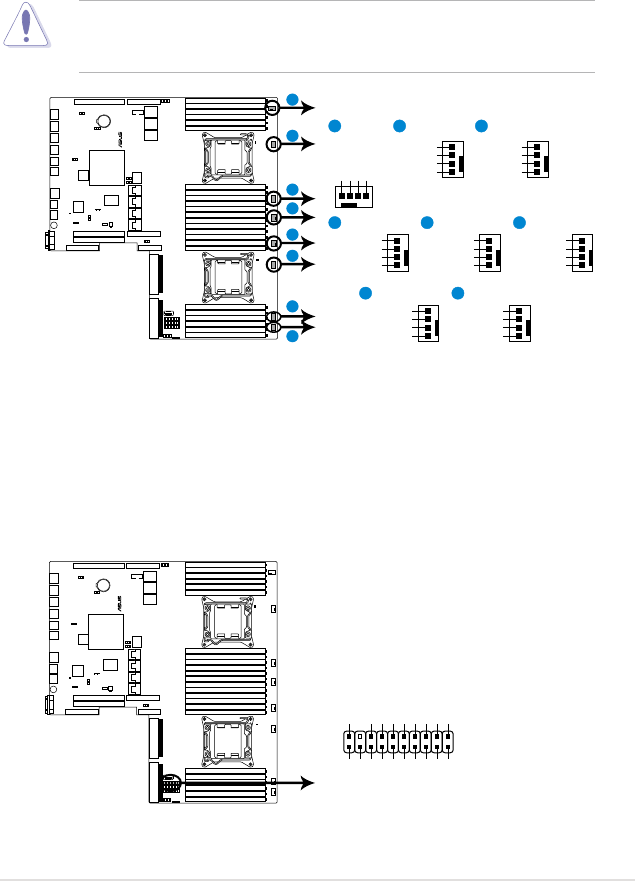

Z9PP-D24 FAN connectors
A
H
G
F
A
FAN4
D
B C
FAN2 FAN3
PWM Control
FAN Speed
FAN Power
GND
PWM Control
FAN Speed
FAN Power
GND
PWM Control
FAN Speed
FAN Power
GND
FAN5
E
PWM Control
FAN Speed
FAN Power
GND
FAN6
F
PWM Control
FAN Speed
FAN Power
GND
FAN7
G
PWM Control
FAN Speed
FAN Power
GND
PWM Control
FAN Speed
FAN Power
GND
FAN8
H
GND
FAN Power
FAN Speed
PWM Control
B
C
D
E
8. TPM connector (20-1 pin TPM1)
This connector supports a Trusted Platform Module (TPM) system, which can
securely store keys, digital certicates, passwords, and data. A TPM system
also helps enhance network security, protects digital identities, and ensures
platform integrity.
®
Z9PP-D24
Z9PP-D24 TPM connector
TPM1
PIN 1
PWRBNT#
LAD2
LAD1
GND
PCICLK
FRAME
PCIRST#
LAD3
LAD0
NC
+3VSB
GND
PWRDWN
+3V
GND
I2CSDAT_PCI
SERIRQ
CLKRUN
FP_RESET#
