4-8 Chapter 4: Motherboard information
4.3 Internal connectors
1. Serial ATA connectors (7-pin SATA1–2 [Blue])
These connectors, controlled by Intel
®
C602 chipset, are for the Serial ATA
signal cables for Serial ATA hard disk drives (SATA 5 connector for optical
drive use by default).
®
Z9PP-D24

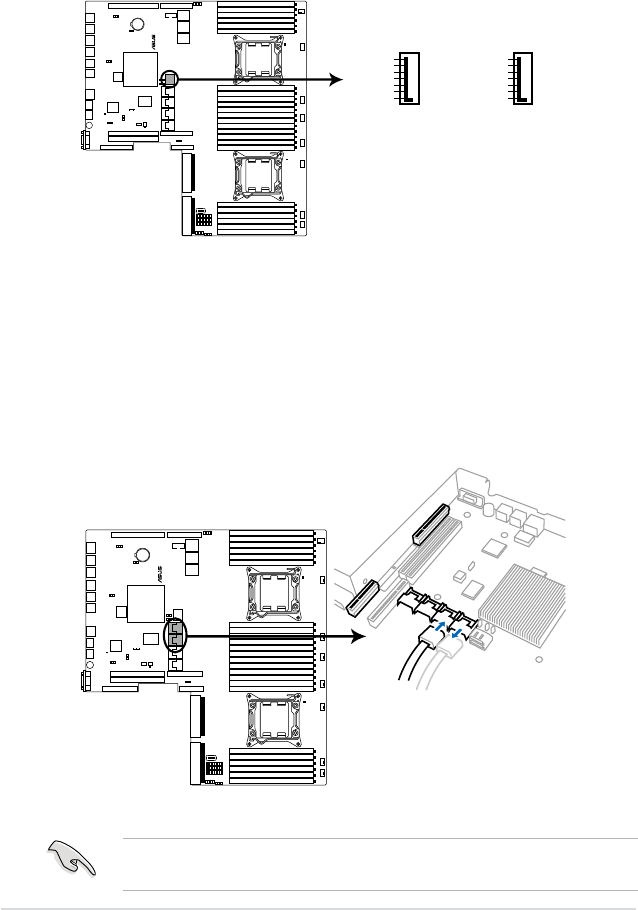

Z9PP-D24 SATA connectors
SATA5
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
SATA6
GN4
RSATA_1TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
2. ISAS1 and ISATA1 connectors
The ISAS1 connector supports four SATA 3Gb/s ports.
Connect to ISAS1 <SCU> connector to support four SATA 3Gb/s hard disk
drives (HDD1-HDD4).
Connect to ISATA <AHCI> connector to support 2 x SATA 6Gb/s (HDD1/
HDD2) and 2 x SATA 3Gb/s (HDD3/HDD4)
The actual data transfer rate depends on the speed of SAS/SATA hard disks
installed.
Z9PP-D24
Z9PP-D24 ISAS connectors
ISAS1
ISATA1
Move ISATA1 cable to ISAS1 connector
