4-6 Chapter 4: Motherboard information
4. RAIDcongurationutilityselection(3-pinRAID_SEL1)
This jumper allows you to select the RAID conguration utility to use when
you create disk arrays. Place the jumper caps over pins 1–2 if you want to
use the LSI MegaRAID software RAID Setup Utility (default); otherwise,
place the jumper caps to pins 2–3 to use the Intel
®
Rapid Storage Technology
Enterprise.
®
Z9PP-D24

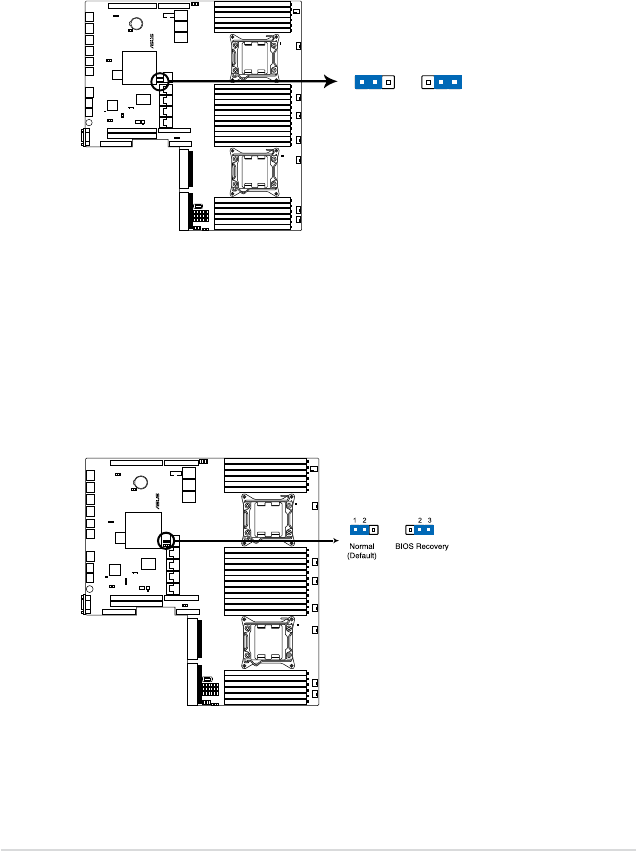

Z9PP-D24 RAID setting
21 2 3
LSI RAID
(Default)
INTEL
RAID_SEL1
PIN1 PIN1
®
Z9PP-D24
Z9PP-D24 ME_RCVR
ME_RCVR1
5. MErmwareforcerecoverysetting(3-pinME_RCVR1)
This jumper allows you to quickly recover the Intel Management Engine (ME)
rmware when it becomes corrupted.
