Chapter 3: Installation options3-4

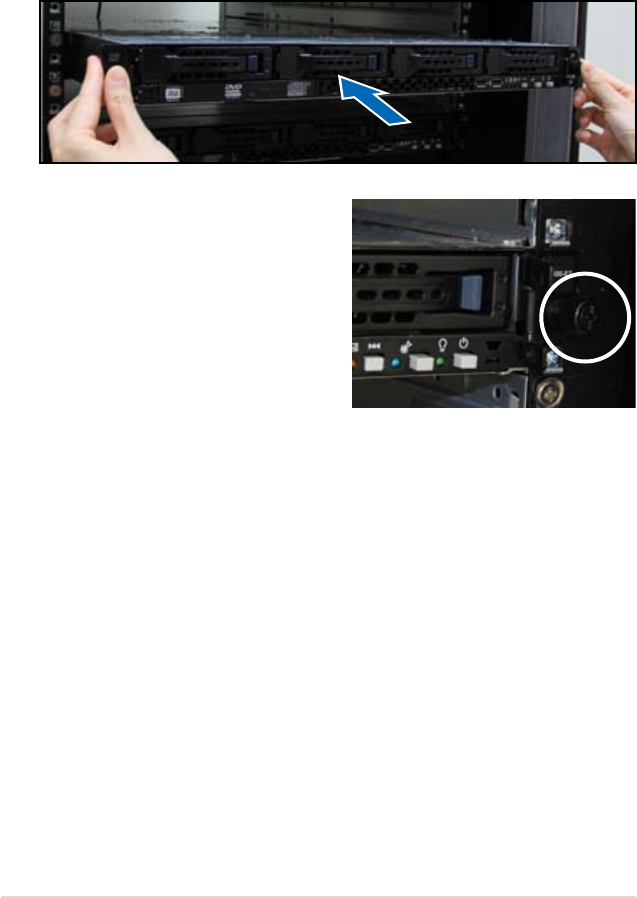

3.1.2 Mounting the server to the rack
To mount the server to the rack
1. Place the server on the rack rails, and then push the server all the way to the
depth of the rack.
To uninstall the server from the rack
1. Loosen the rack screws that secured the server to the rack.
2. Pull the server from the rack.
2. Tighten the two rack screws to
secure the server in place.
