Chapter 3: Installation options3-2
3.1 Friction Rail Kit Installation Guide

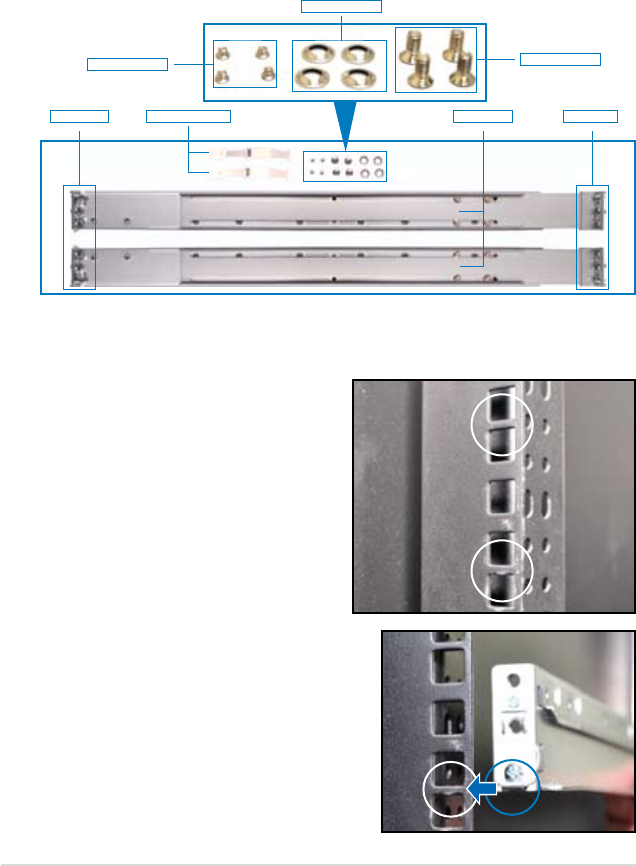

Your friction rail kit package contains:
• One pair of rack rails
• One pair of xing latches
• 4 latch screws, 4 rail screws and 4 rail washers
3.1.1 Setting up the friction rail kit on the rack
Rack railsFixing latchesFront end Rear end
Latch screws
Rail screws
Rail Washers
1. Select a 1U space on the rack
where you want to install the rack
rail. A 1U space consists of three
square mounting holes with two
thin lips on the top and the bottom,
as shown in the right gure.
2. Adjust the rack rail to t the depth
of the rack.
3. From inside the rack, place the rear
rail hook on the bottom thin lip of the
rear mounting hole, and then place the
front rail hook on the bottom thin lip of
the front mounting hole, as shown in
the right gure.
