2.8.2 Redundant power supply module

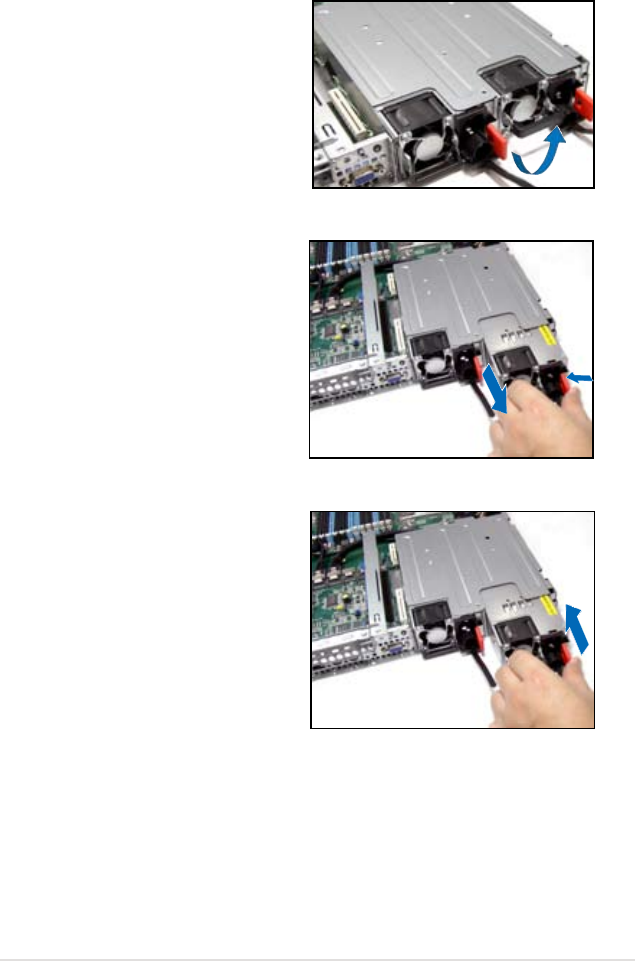

To replace a failed redundant power supply module
1. Lift up the power supply module
lever.
2. Hold the power supply module
lever and press the PSU latch.
3. Firmly pull the power supply
module out of the system chassis.
4. Firmly push the new power supply
module into the chassis until the
latch locks to the server chassis.
