2.5 Expansion slot
2.5.1 Installing an expansion card to the riser card bracket

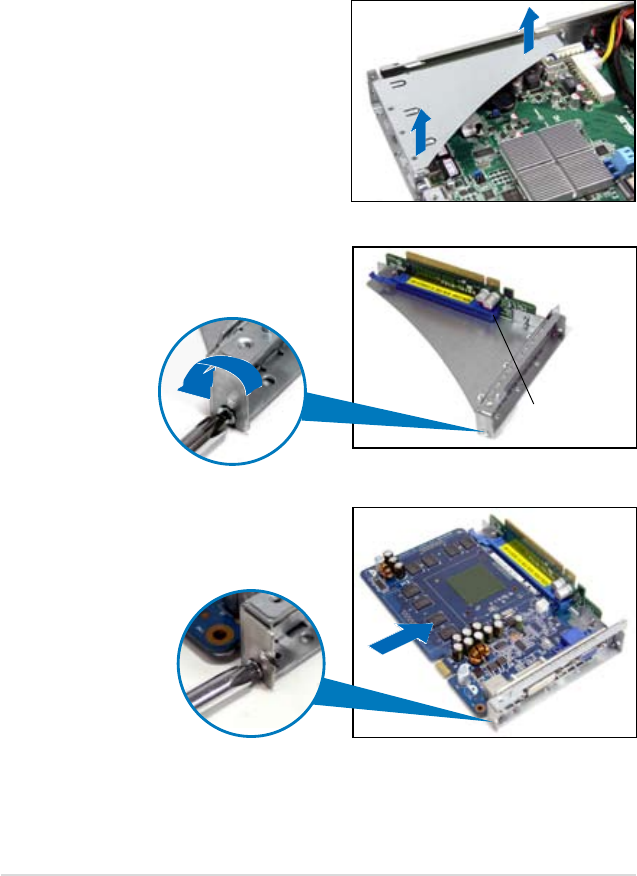

The barebone server comes with two riser card brackets. You need to remove the
bracket if you want to install PCI Express x8 or x16 expansion cards.
To install a PCI Express x8 or x16 card in PCIE1 slot:
2. Place the riser card bracket on a
at and stable surface, then remove
the screw from the slot bay.
1. Firmly hold the riser card bracket,
then pull it up to detach it from
the PCI Express x16 slot on the
motherboard.
3. Install a PCI Express x8 or x16
card to the bracket as shown, then
secure the card with a screw.
PCI Express x16 slot
