2-9ASUS RS700-E7/RS4-C
2.3 System memory
2.3.1 Overview
The motherboard comes with 12 (per CPU) Double Data Rate 3 (DDR3) Dual Inline
Memory Modules (DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is
notched differently to prevent installation on a DDR2 DIMM socket. DDR3 modules
are developed for better performance with less power consumption.

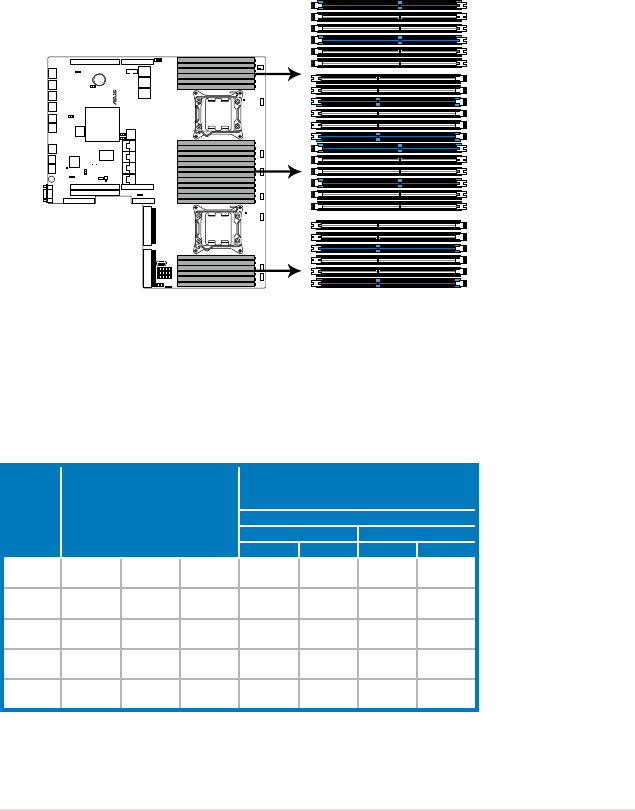

The gure illustrates the location of the DDR3 DIMM sockets:
®
Z9PP-D24
Z9PP-D24 240-pin DDR3 DIMM sockets
DIMM_C3
DIMM_C2
DIMM_C1
DIMM_D3
DIMM_D2
DIMM_D1
DIMM_E1
DIMM_E2
DIMM_E3
DIMM_F1
DIMM_F2
DIMM_F3
DIMM_H2
DIMM_H3
DIMM_H1
DIMM_G3
DIMM_G2
DIMM_G1
DIMM_A2
DIMM_A1
DIMM_A3
DIMM_B1
DIMM_B2
DIMM_B3
2.3.2 Memory Support List
Intel Xeon E5-2600 Series Processor UDIMM Memory Support List
Ranks
Per DIMM
and Data
Width
Memory Capacity Per DIMM
Speed (MT/s) and Voltage Validated by Slot
Per Channel (SPC) and DIMM Per Channel
(DPC)
3 Slots Per Channel
1DPC 2DPC
1.35V 1.5V 1.35V
1.5V
SRx8
Non-ECC
1GB 2GB 4GB N/A
1066,
1333,
N/A
1066,
1333,
DRx8
Non-ECC
2GB 4GB 8GB N/A
1066,
1333,
N/A
1066,
1333,
SRx16
Non-ECC
512MB 1GB 2GB N/A
1066,
1333,
N/A
1066,
1333,
SRx8 ECC 1GB 2GB 4GB 1066
1066,
1333,
1066
1066,
1333,
DRx8 ECC 2GB 4GB 8GB 1066
1066,
1333,
1066
1066,
1333,
