1.4 Front panel features

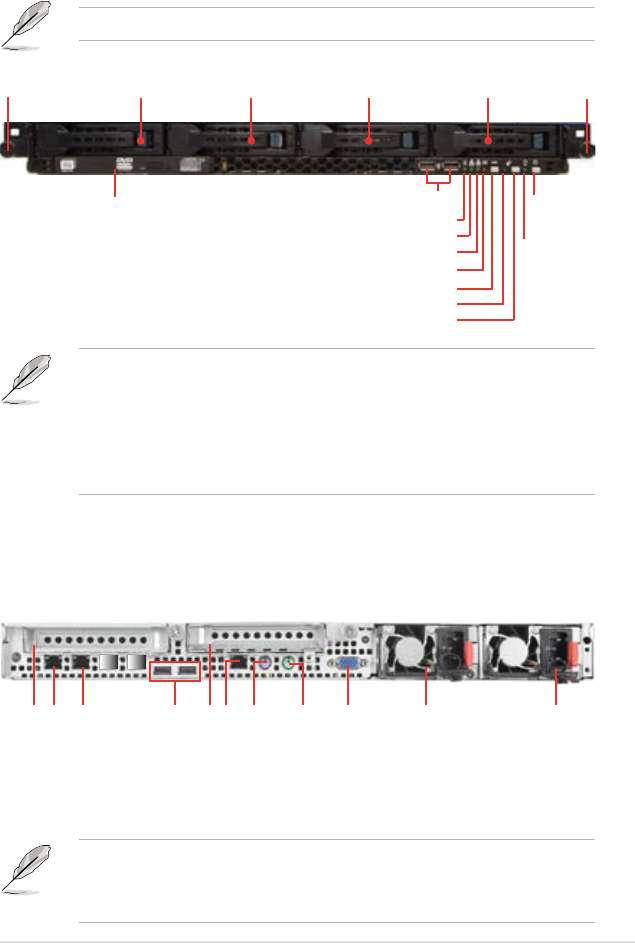

The barebone server displays a simple yet stylish front panel with easily accessible
features. The power and reset buttons, LED indicators, slim type optical drive, and
two USB ports are located on the front panel.
Refer to section 1.7.1 Front panel LEDs for the LED descriptions.
• The ports for the PS/2 keyboard, PS/2 mouse, serial port, USB, VGA, and
Gigabit LAN do not appear on the rear panel if motherboard is not present.
• *The port is for ASUS ASMB6-iKVM controller card only.
1.5 Rear panel features
The rear panel includes the expansion slots, system power socket, and rear fans.
The middle part includes the I/O shield with openings for the rear panel connectors
on the motherboard.
PS/2 keyboard port
USB ports
LAN port 1
VGA port
LAN port 2
Power cord
connector
PS/2 mouse port
Second
Redundant power
(Optional) DMLAN port*
Expansion slot Expansion slot
Factory shipment (default):
• Connect HDD1 - HDD4 to ISATA1 <AHCI> to support 2 x SATA 6Gb/s
(HDD1/HDD2) and 2 x SATA 3Gb/s (HDD3/HDD4). If you want SAS HDD
support, please upgrade with a PIKE RAID card.
• Refer to section
2.8.5 Installing ASUS PIKE RAID card
for the
descriptions.
Optical drive
Rack screw
Rack screw
USB ports
LAN2 LED
HDD Access LED
LAN1 LED
Message LED
Power
button
Power
LED
Location switch
Reset button
Location LED
HDD 1 HDD 2 HDD 3 HDD 4
