ASUS Z87-WS
1-33
Chapter 1

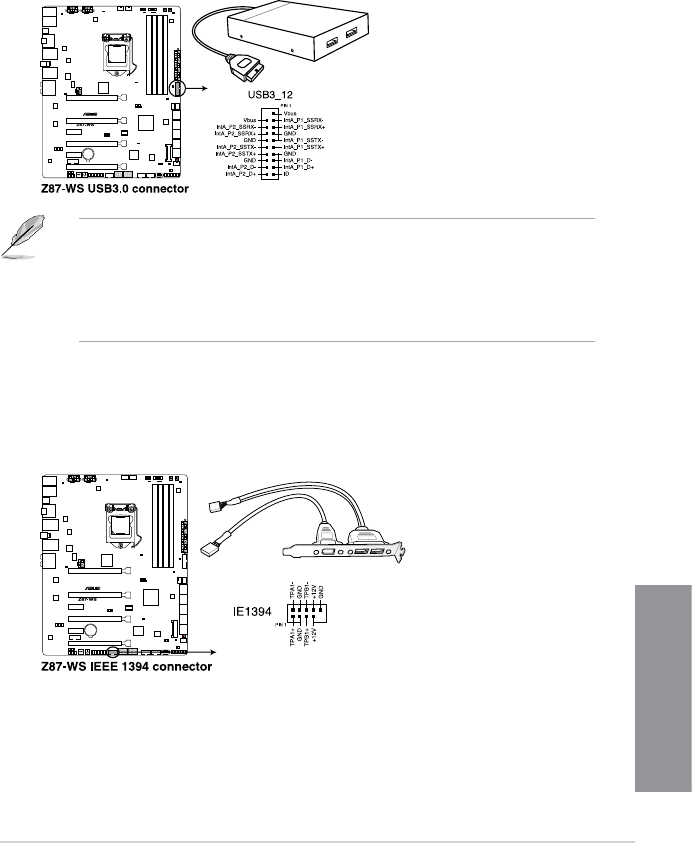

4. USB 3.0 connector (20-1 pin USB3_12)
This connector allows you to connect a USB 3.0 module for additional USB 3.0 front
or rear panel ports. With an installed USB 3.0 module, you can enjoy all the benets of
USB 3.0 including faster data transfer speeds of up to 5Gbps, faster charging time for
USB-chargeable devices, optimized power efciency, and backward compatibility with
USB 2.0.
• The USB 3.0 module is purchased separately.
• These connectors are based on xHCI specication. We recommend you to install the
related driver to fully use the USB 3.0 ports under Windows
®
7.
• The plugged USB 3.0 device may run on xHCI or EHCI mode depending on the
operating system’s setting.
5. IEEE 1394 port connector (10-1 pin IE1394)
This connector is for an IEEE 1394 port. Connect the IEEE 1394 module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
