ASUS Z87-WS
3-37
Chapter 3

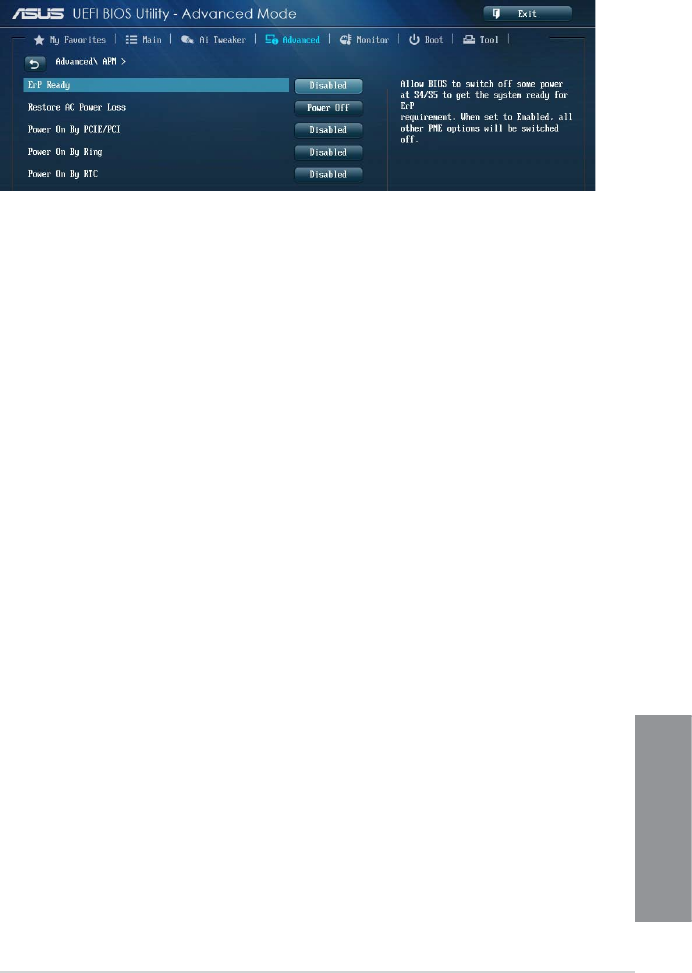

ErP Ready [Disabled]
Allows you to switch off some power at S4+S5 or S5 to get the system ready for ErP
requirement. When set to [Enabled], all other PME options will be switched off.
Conguration options: [Disabled] [Enabled (S4+S5] [Enabled (S5)]
Restore AC Power Loss [Power Off]
[Power On] The system goes into ON state after an AC power loss.
[Power Off] The system goes into OFF state after an AC power loss.
[Last State] The system goes into either OFF or ON state, whatever the system state
was before the AC power loss.
Power On By PS/2 Mouse/Keyboard [Disabled]
[Disabled] Disables the Power On by a PS/2 keyboard.
[Space Bar] Sets the Space Bar on the PS/2 keyboard to turn on the system.
[Ctrl-Esc] Sets the Ctrl+Esc key on the PS/2 keyboard to turn on the system.
[Power Key] Sets Power key on the PS/2 keyboard to turn on the system. This feature
requires an ATX power supply that provides at least 1A on the +5VSB lead.
Power On By PCIE/PCI [Disabled]
[Disabled] Disables the PCIE/PCI devices to generate a wake-on-LAN feature of the
Intel
®
/LAN device or other installed PCIE LAN devices.
[Enabled] Enables the PCIE/PCI devices to generate a wake-on-LAN feature of the
Intel
®
/LAN device or other installed PCIE LAN devices.
Power On By Ring [Disabled]
[Disabled] Disables Wake-On-Ring from generating a wake event.
[Enabled] Enables Wake-On-Ring to generate a wake event.
Power On By RTC [Disabled]
[Disabled] Disables RTC to generate a wake event.
[Enabled] When set to
[Enabled], the items RTC Alarm Date (Days) and Hour/
Minute/Second will become user-congurable with set values.
3.6.8 APM
