- ASUSTeK COMPUTER 1U Rackmount Barebone Server User Guide

Chapter 4: Motherboard informationChapter 4: Motherboard information
Chapter 4: Motherboard informationChapter 4: Motherboard information
Chapter 4: Motherboard information
4-144-14
4-144-14
4-14
9.9.
9.9.
9.
Printer port connector (26-1 pin LPT1)Printer port connector (26-1 pin LPT1)
Printer port connector (26-1 pin LPT1)Printer port connector (26-1 pin LPT1)
Printer port connector (26-1 pin LPT1)
This connector is for a parallel printer port. Connect the parallel printer
port module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
10.10.
10.10.
10.
BMC connector (16-pin BMCCONN1)BMC connector (16-pin BMCCONN1)
BMC connector (16-pin BMCCONN1)BMC connector (16-pin BMCCONN1)
BMC connector (16-pin BMCCONN1)
This connector is for the optional ASUS server management card.

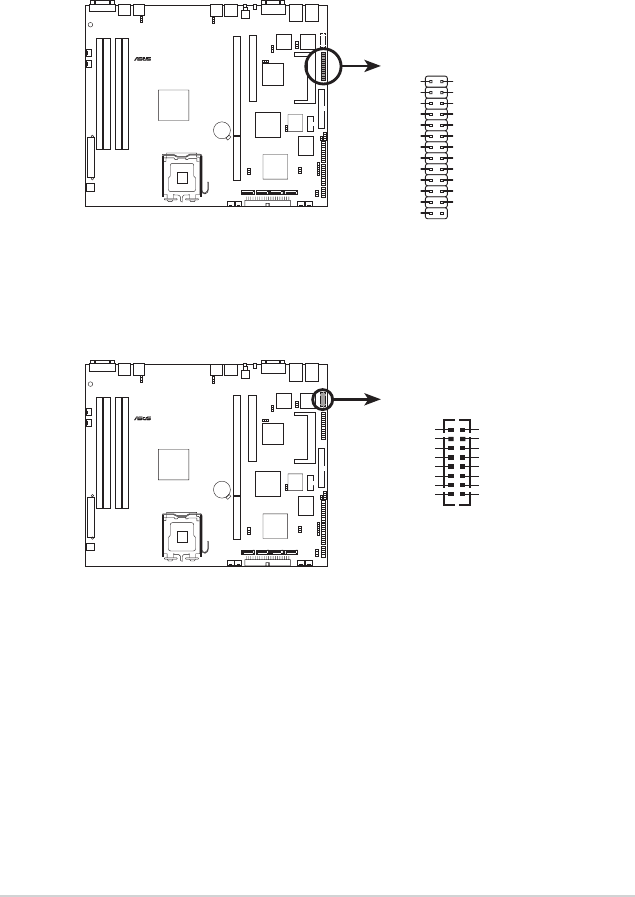

P5MT-R
®
P5MT-R Parallel port connector
LPT1
SPD7
GND
SPD6
GND
SPD5
GND
SPD4
GND
SLCT
PE
GND
BUSY
ACK#
GND
SPD3
GND
SPD2 SLIN#
SPD1 PINIT#
SPD0 ERROR#
STB# AFD#
GND
Pin 1
P5MT-R
®
P5MT-R BMC connector
BMCCONN1
+5VSB
+5VSB
BMC SMBCLK
12CCLK1
PSON#
BMC_RST#
PWROK
PSONEN#
+5VSB
+5VSB
BMC SMBDATA
12CDATA1
FP_PWRBTN#
BMC_PRESENT#
BMC_SMI#
GND
