Troubleshooting guide

SECTION 1
GETTING ACQUAINTED
1
SECTION 1 – Getting Acquainted

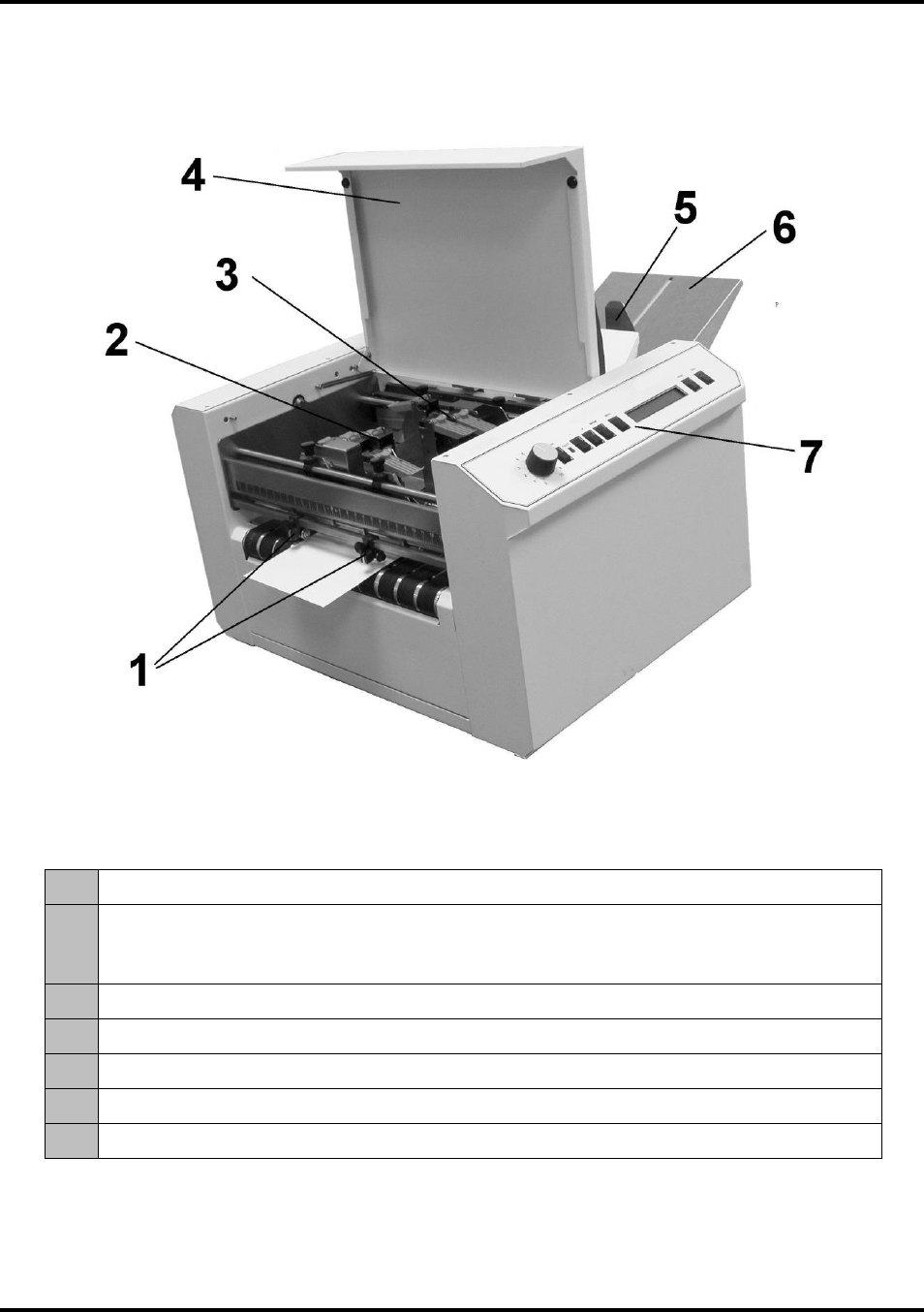

Operator View
1.
Exit Guides – Help media to exit Printer.
2.
Printhead Assembly – AstroJet 2650P has six Printheads arranged on two rails and
can print an image up to 3" wide. AstroJet 2800P has eight Printheads arranged on two
rails and can print an image up to 4" wide.
3.
Media Sensor – Located behind Printhead Assembly.
4.
Safety Cover – Encloses the Printheads.
5.
Rear Media Guide – Holds media against Front Plate.
6.
Rear Media Support – Supports media while it is being fed.
7.
Control Panel – Used to operate Printer. Knob is media thickness control.
