User manual

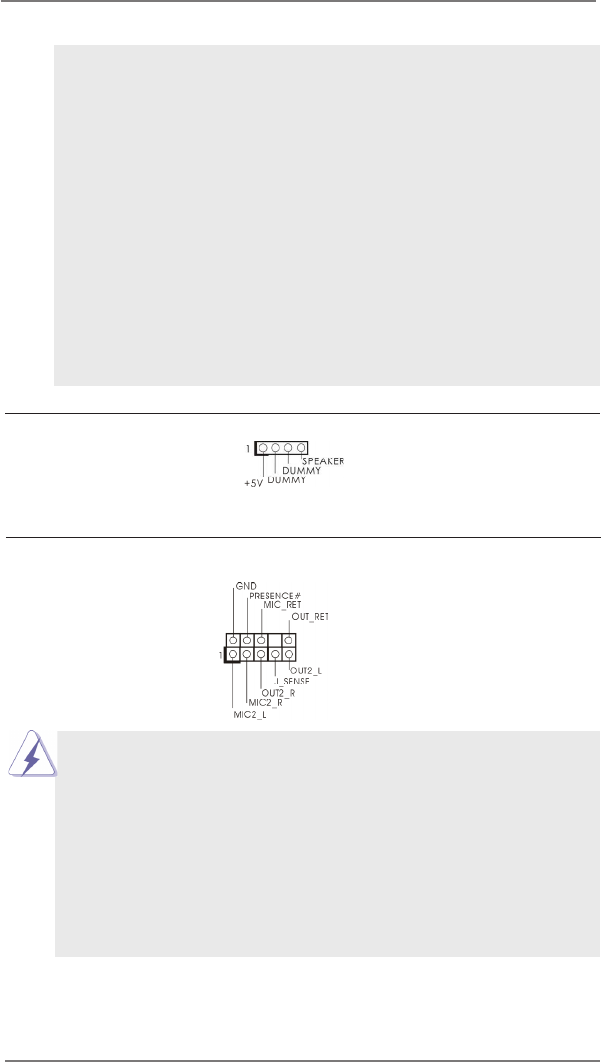

Speaker Header



(see p.10,12,14

B. Internet status indicator (2-pin LAN1_LED, LAN2_LED)

These two 2-pin headers allow you to use the Gigabit internet

indicator cable to connect to the LAN status indicator. When this



C. Chassis intrusion pin (4-pin CHASSIS)

This header is provided for host computer chassis with chassis

intrusion detection designs. In addition, it must also work with

external detection equipment, such as a chassis intrusion

detection sensor or a microswitch. When this function is activated,

if any chassis component movement occurs, the sensor will

immediately detect it and send a signal to this header, and the

system will then record this chassis intrusion event. The default

setting is set to the CASEOPEN and GND pin; this function is off.

D. Locator LED (6-pin LOCATOR)

This header is for the locator switch and LED on the front panel.

Please connect the speaker

to this header.

 

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

 

header as below:

 

 

 

 



Front Panel Audio Header

This is an interface for front



panel audio cable that allows

(see 

convenient connection and

control of audio devices.
