User manual

TPMS Header



(see p.10,12,14

System Panel Header



(see p.10,12,14

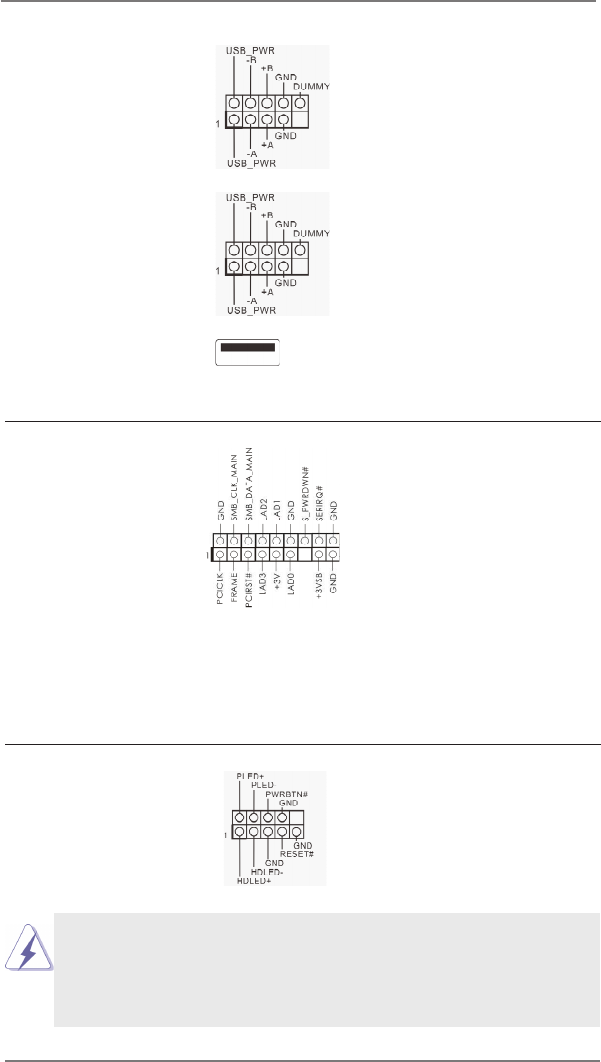

USB 2.0 Headers

and Ports













Besides two default USB

2.0 ports on the I/O panel,

there are are two USB 2.0

headers and one port on

this motherboard. Each USB

2.0 header can support two

USB 2.0 ports.

This connector supports

Trusted Platform Module



securely store keys, digital



data. A TPM system also

helps enhance network se-

curity, protects digital identi-

ties, and ensures platform

integrity.

This header accommodates

several system front panel

functions.

Connect the power switch, reset switch and system status indica-

tor on the chassis to this header according to the pin assignments

below. Note the positive and negative pins before connecting the

cables.
