User's Manual

Getting started

Connecting to Your Cable Modem

If you are going to connect the WAN port to a DSL modem, follow the steps below:

HOW to setup:

1. Use the Ethernet cable comes with your DSL modem. Plug one end to the 10Base-T

Ethernet port of the modem, and the other end to the WAN port on your Broadband

Home Router (shown as Network 1 in the figure below).

2. Attach one end of the Ethernet cable with RJ-45 connector to the LAN port of your

Broadband Home Router, and the other end to a hub or a client PC (shown as Network 2

in the figure below).

3. At the LAN side, you also can use wireless client at the same time (please refer to “LAN

Connection” section).

4. Set the Cable Modem’s connection mode as bridge mode.

5. Enter the web-based Configuration Manager to configure the WAN setting. Choose the

connection type that you registered from your ISP (refer to “Easy Setting” section).

Note

To connect a configuration-purpose PC shown as Network 2 in the figure below,

please refer to “LAN Connection”.

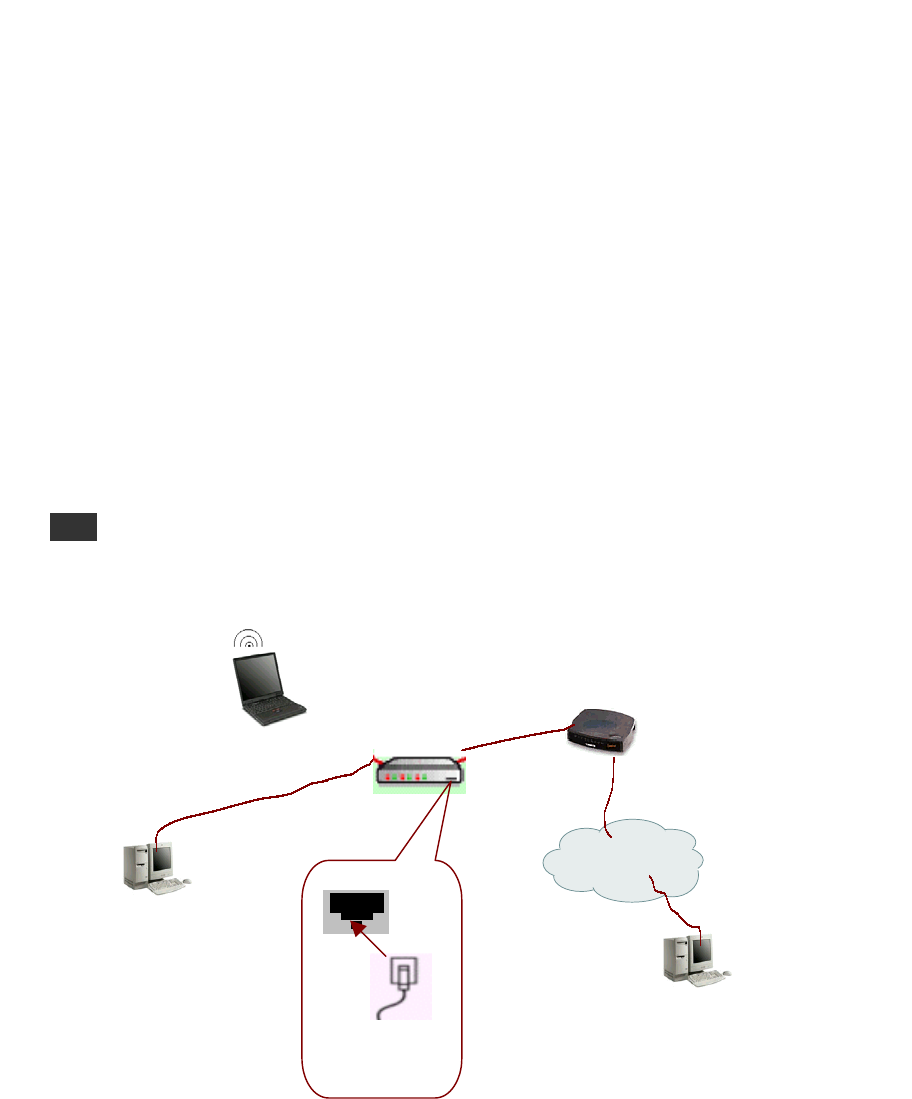

Network 1

Internet

Cable Modem

Broadband Home Router

Wireless LAN

Ethernet LAN

Network 2
