User's Manual

xDSL/Cable Modem Connection

The Broadband Home Router provides continuous and high-speed access between your

wireless and Ethernet devices. In addition, it can connect your entire network to the Internet

through an external broadband access device (such as DSL modem or cable modem shown as

Network 1 in the figure below).

Note

1. The attached xDSL/cable modem must provide a standard 10Base-T Ethernet

connection. Please use the Ethernet cable comes with your broadband device or any

other standard 10Base-T Ethernet cable.

2. The Ethernet cable supplied by your ISP for connecting to your xDSL/cable modem

may be an Ethernet crossover cable rather than a straight-through cable. It is

important to use the cable provided by your ISP to connect the modem to your

Broadband Home Router.

Connecting to Your xDSL Modem

If you are going to connect the WAN port to a DSL modem, follow the steps below:

HOW to setup:

1. Use the Ethernet cable comes with your DSL modem. Plug one end to the 10Base-T

Ethernet port of the modem, and the other end to the WAN port on your Broadband

Home Router (shown as Network 1 in the figure below).

2. Attach one end of the Ethernet cable with RJ-45 connector to the LAN port of your

Broadband Home Router, and the other end to a hub or a client PC (shown as Network 2

in the figure below).

3. At the LAN side, you also can use wireless client at the same time (please refer to “LAN

Connection ” section).

4. Set the DSL Modem’s connection mode as bridge mode.

5. Enter the web-based Configuration Manager to configure the WAN setting. Choose the

connection type that you registered from your ISP (refer to “Easy Setting” section).

Note

LAN configuration-purpose shown as Network 2 in the figure below, please refer to

“LAN Connection Example”.

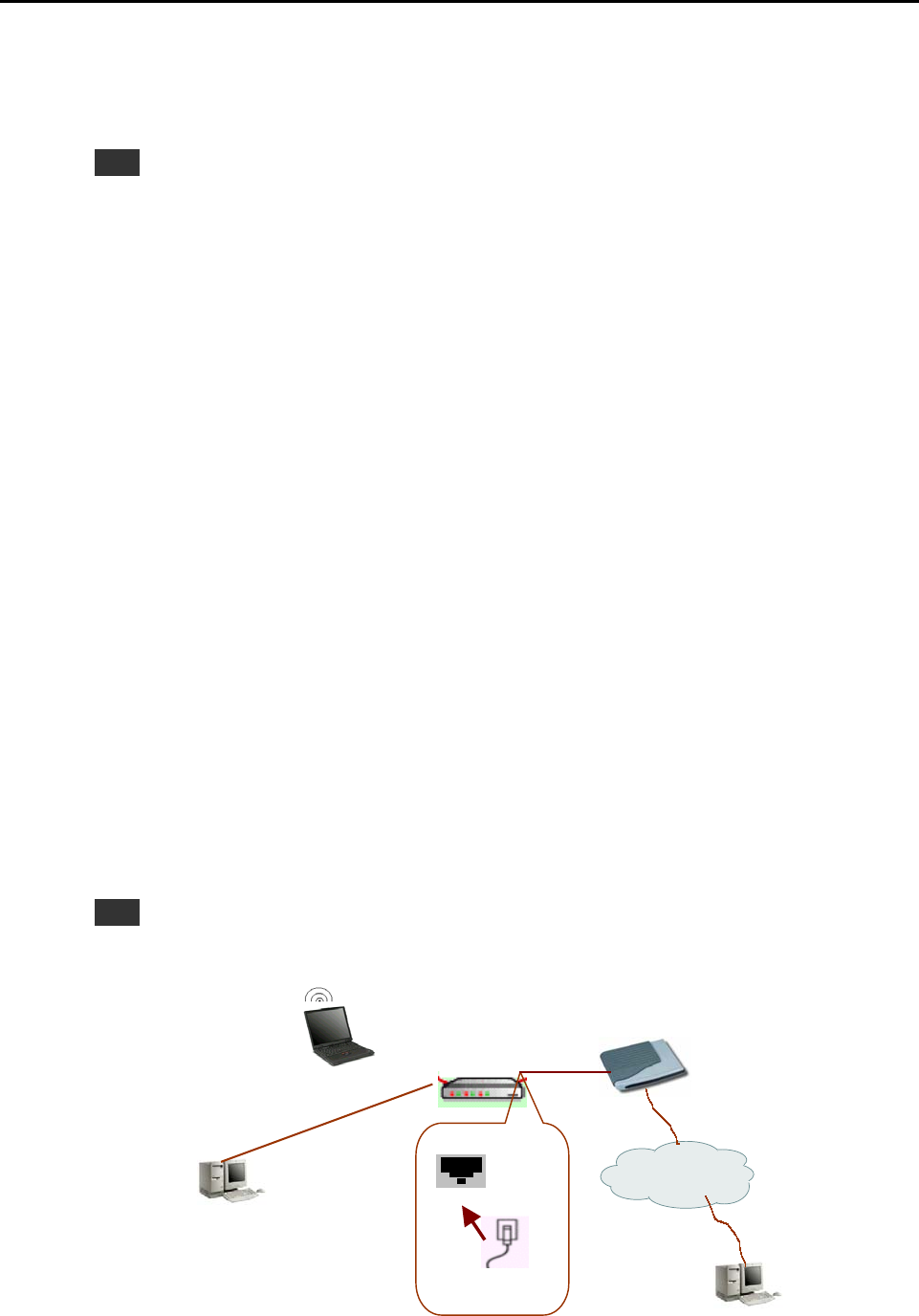

Network 1

Internet

xDSL Modem

Broadband Home Router

Wireless LAN

Ethernet LAN

Network 2
