User's Manual

4
BIT
Reader Hex
address
1 2 3 4 5 ~ 8
Function
(RS485)
BIT
Address
1 80 Off Off Off Off Refer to
above
table
2 81 On Off Off Off
3 82 Off On Off Off
4 83 On On Off Off
5 84 Off Off On Off
6 85 On Off On Off
7 86 Off On On Off
8 87 On On On Off
Table 4 RS485 Readers Address Dip Switch Setting

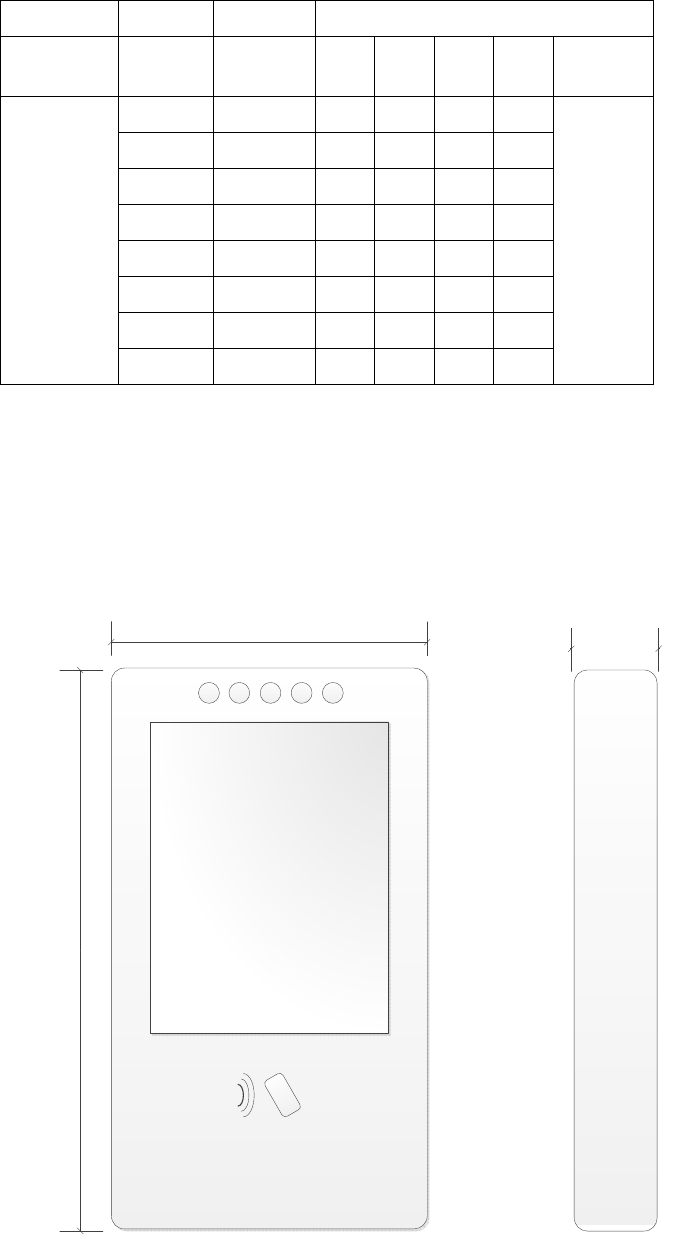

1.4 Dimension
WebENTRA
76.00mm.
135.00mm.
FRONT
SIDE
21.00mm.
Reader Module Dimension
