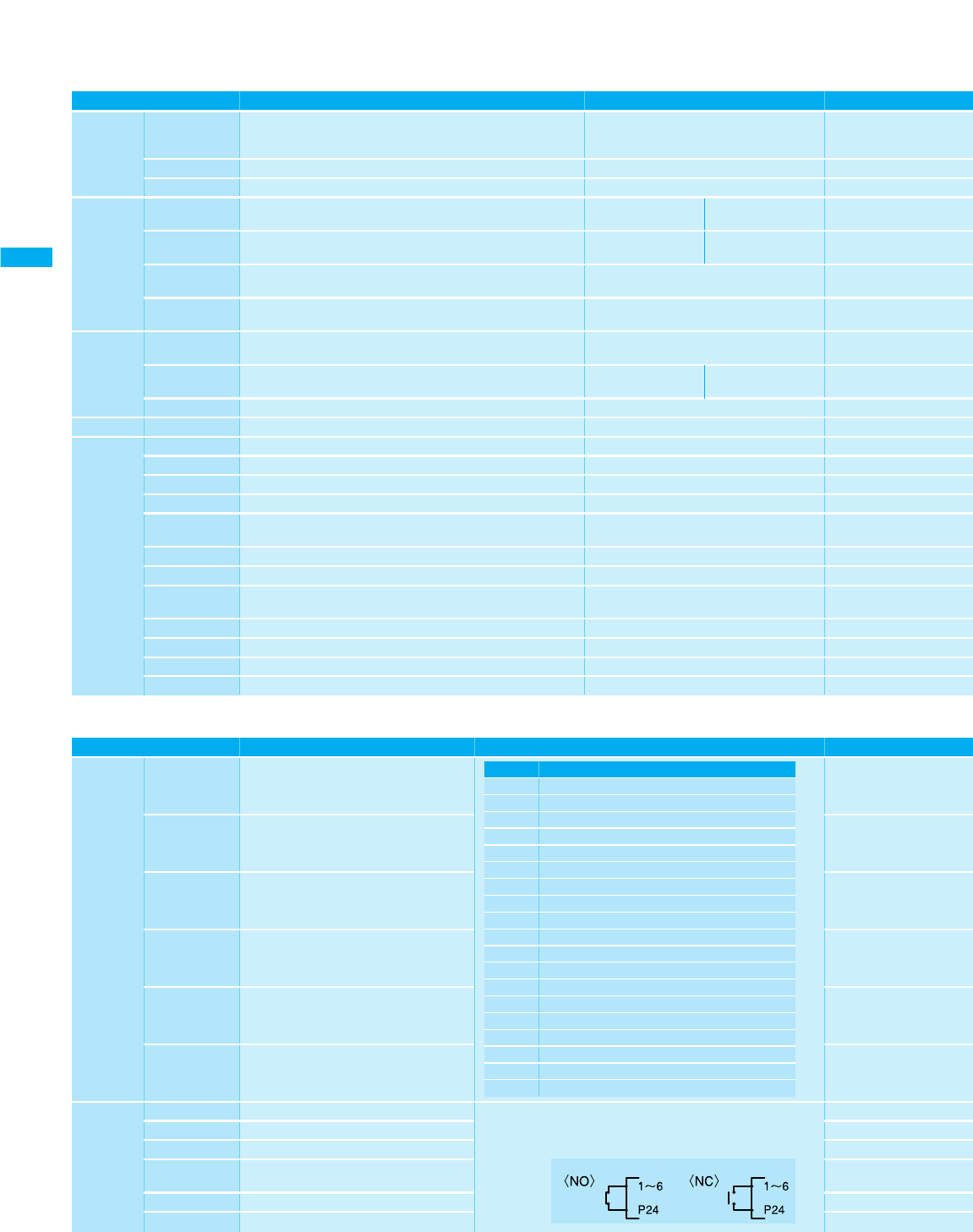

Specifications

Code Function Setting Range Initial Setting
Code Function Setting Range Initial Setting
Trip/0Hz start
b01 Selection of restart mode /interrupt start Trip
/interrupt stop
b02 Allowable instantaneous power failure time setting 0.3 ~ 25 s 1.0 s
b03
Time and delay enforced before motor restarts 0.3 ~ 100 s 1.0 s
b12 Electronic thermal level setting
Rated
current value
b212 2nd setting electronic thermal level setting
Rated
current value
b13 Electronic thermal characteristic selection
Reduced torque Reduced torque
/constant torque characteristic
b213
2nd setting electronic thermal characteristic selection
Reduced torque Reduced torque
/constant torque characteristic
b21 Overload restriction operation mode 00 ~ 02 (code)
01
:ON only at acceleration
and constant speed
b22 Overload restriction setting
Rated
current x1.25
b23 Deceleration rate at overload restriction 0.3 ~ 30.0 1.0
b31 Software lock selection 00 ~ 03 (code) 01
b81 Analog meter adjustment 0 ~ 255 80
b82 Start frequency adjustment 0.5 ~ 9.9 Hz 0.5 Hz
b83 Carrier frequency setting 0.5 ~ 16 kHz 5 kHz
b84 Initialization mode selection Trip history clear /Parameter initialization Trip history clear
b85 Country code for initialization 01, 02
xxE type: 01
xxU type: 02
b86 Frequency conversion value setting 0.1 ~ 99.9 1.0
b87
Stop key validity selection during terminal operation Enabled/disabled Enabled
b88 Resume on FRS cancellation mode selection
0Hz start/frequency
0Hz start
matching start
b89 Monitoring selection 01 ~ 07 (code) 01
b90 Dynaimic braking use time(ratio)setting 00 ~ 100.0 00
b91 Deceleration mode selection Deceleration stop/free run stop Deceleration stop
b92 FAN ON/OFF selection ON/OFF at inverter stop ON
B Group: Fine Tuning Functions
Instantaneous
Stop Restart
Electronic
Thermal
Overload
Limit
Lock
Others
50 ~120% of the rated
inverter current value
Differs depending
on model type
50 ~120% of the rated
inverter current value
Differs depending
on model type
50 ~150% of the rated
inverter current value
Differs depending
on model type
C01 Input terminal 1 setting FW
C02 Input terminal 2 setting RV
C03 Input terminal 3 setting
xxE type:CF1
xxU type:AT
C04 Input terminal 4 setting
xxE type:CF2
xxU type:USP
C05 Input terminal 5 setting
C06 Input terminal 6 setting
C11 Input terminal 1 active state NO
C12 Input terminal 2 active state NO
C13 Input terminal 3 active state NO
C14 Input terminal 4 active state
xxE type:NO
xxU type:NC
C15 Input terminal 5 active state NO
C16 Input terminal 6 active state NO
C Group: Intelligent Terminal Functions
Intelligent
Input
Terminal
Setting
Intelligent
Input
Terminal
Active
State
Input terminal active state
NO: Normally open
NC: Normally closed
V
Input ON State
Code Function
00 FW (Forward run)
01 RV (Reverse run)
02 CF1 (Multispeed 1)
03 CF2 (Multispeed 2)
04 CF3 (Multispeed 3)
05 CF4 (Multispeed 4)
06 JG (Jogging operation )
07 DB (External DC braking)
08 SET (2nd setting selection)
09 2CH
(Second acceleration/deceleration command)
11 FRS (Free run stop command)
12 EXT (External trip)
13 USP (Unattended start protection)
15 SFT (Software lock)
16 AT (Analog current input selection signal)
18 RS (Reset)
19
PTC (Thermistor trip)[Assignable to C05 only]
27 UP (Remote control function, Acceleration)
28 DWN (Remote control function, Decceleration)
11
xxE type:RS
xxU type:2CH
xxE type: 2CH
xxU type:
RS
