User's Manual

Exhibit 6 Page 25 from 35

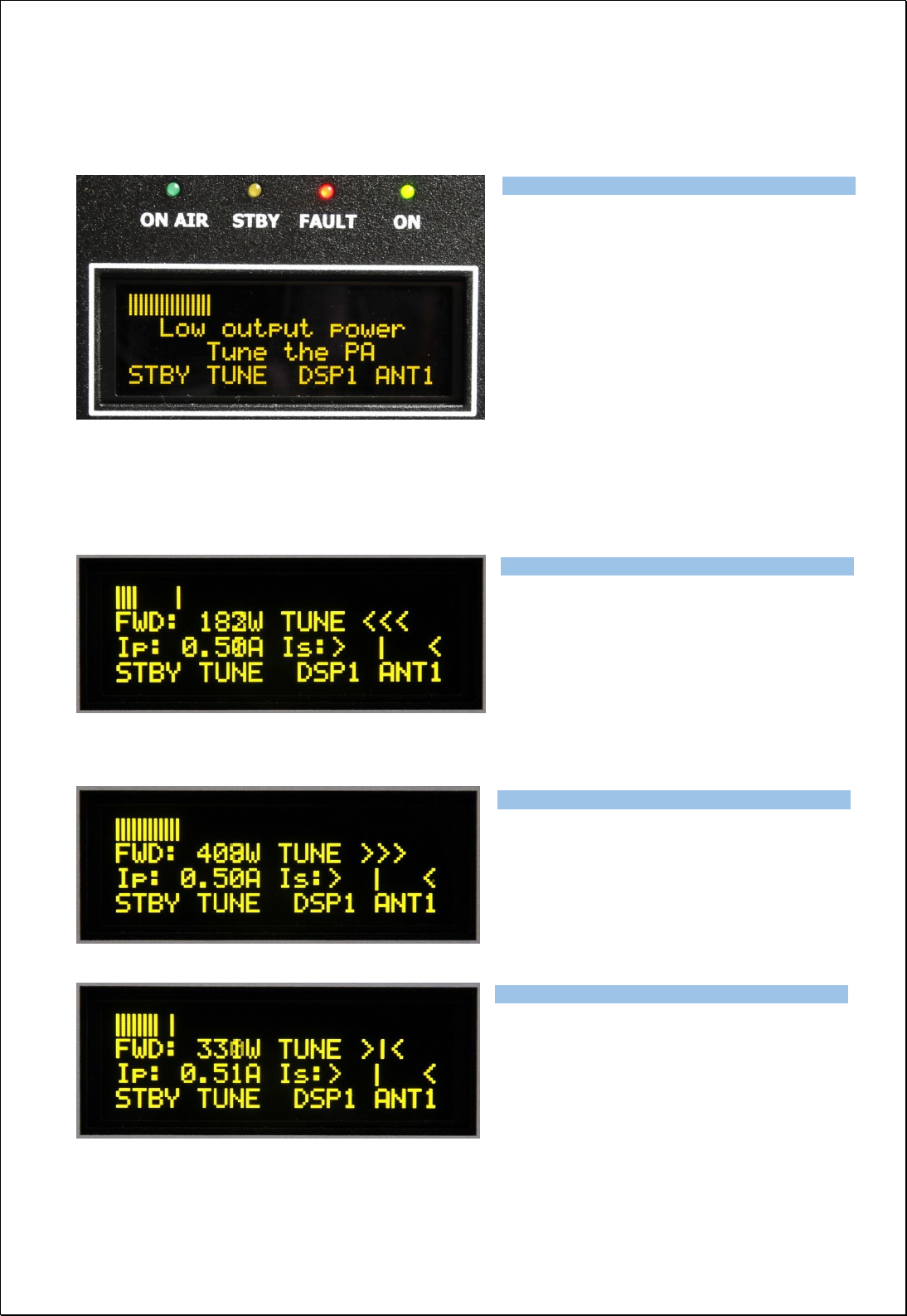

Press OPER to enter operation mode. Apply low input power and press PTT. Be sure you selected right
BAND, TUNE and LOAD knob positions. If you made some mistake, fault message appears:
Safety circuit stopped transmitting, fault LED
is ON (Fault code 4 is saving to the memory).
Release PTT, set proper positions of BAND,
TUNE and LOAD according to the table and
press PTT again.
Another mistake can occur, if you have antenna connected to the wrong output. In such a case „SWR
is too high“ error message appears. Change antenna output using S4 button.
This is not an optimal result, TUNE indicator
must go between both arrows. Use TUNE
knob to get maximum output power and
LOAD knob to get indicator between
arrows.
Another example of not optimal result, TUNE
indicator must go between both arrows. Use
TUNE knob to get maximum output power
and LOAD knob to get indicator between
arrows (in arrows direction).
This is a good result of tuning.
Now increase input power slowly and watch
the display.
Type of supported TCVR and working
frequency are visible on the display.
AUTO LED is ON.
Type of supported TCVR and working
frequency are visible on the display.
AUTO LED is ON.
Type of supported TCVR and working
frequency are visible on the display.
AUTO LED is ON.
Type of supported TCVR and working
frequency are visible on the display.
AUTO LED is ON.
