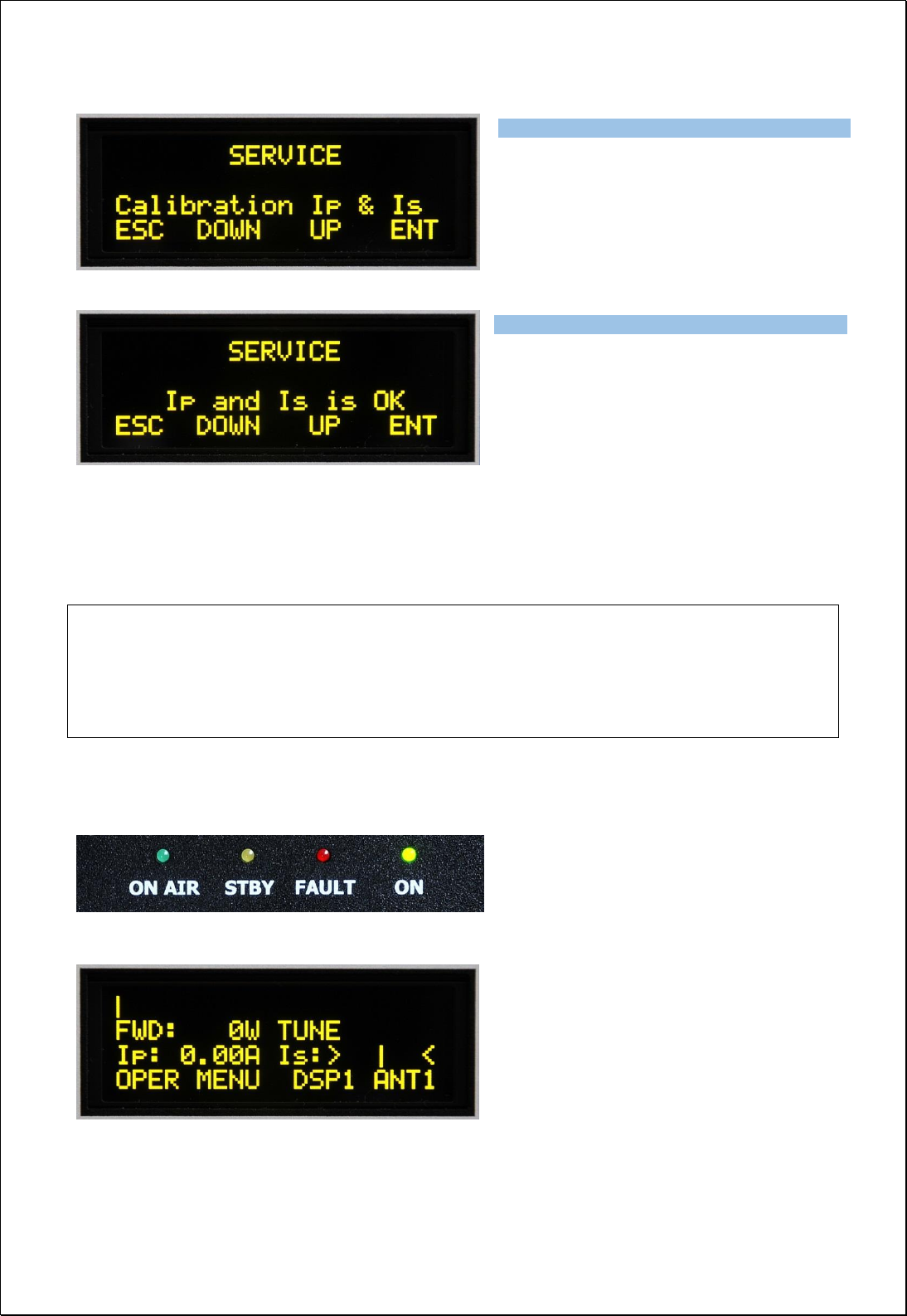

Use UP or DOWN to select Calibration Ip & Is.
Press ENT to do it.
Ip and Is calibration runs in the background.
Result only is visible on the display.
Press ESC to go one level back.
5.3. Operation mode
CAUTION
In STBY the amplifier is in bypass-mode and your transceiver is directly connected to the
antenna. Maximum allowed power in bypass mode is 100 Watts! Passing RF power is
measured with analog wattmeter only. It is not displayed if PA is either in standby mode
or turned OFF.
Press OPER to activate operation mode.
STBY LED switched OFF.
Type of supported TCVR and working
frequency are visible on the display.
AUTO LED is ON.
Type of supported TCVR and working
frequency are visible on the display.
AUTO LED is ON.
