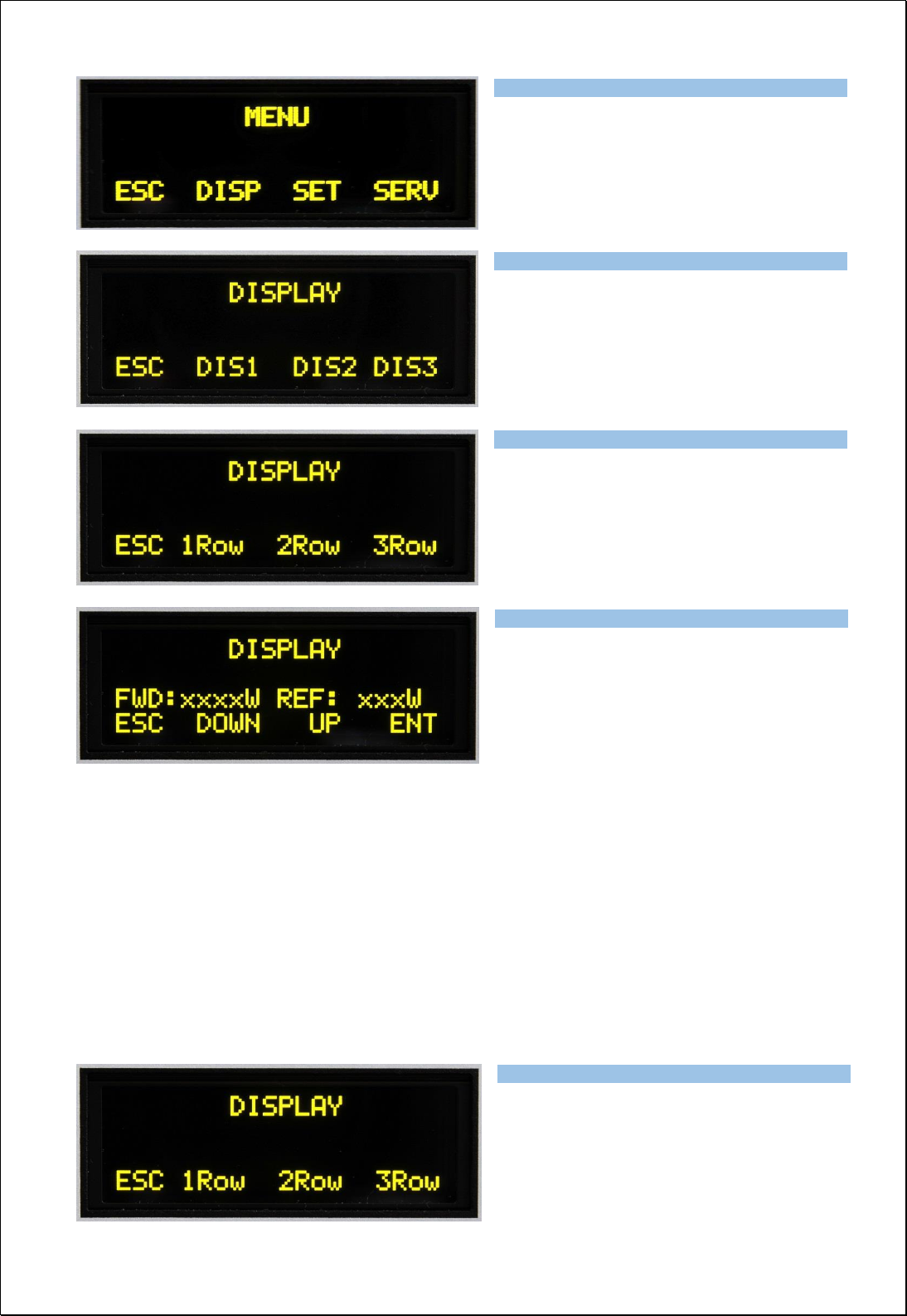

After pressing MENU (S2) S1–S4 buttons

changed their functions. To edit display

parameters, press DISP button.

Press DIS1 to edit first display.

Now you can define parameters for first three

rows. Start with first line, press 1Row button.

Go UP or DOWN to select desired parameter.

Press ENT to confirm selection.

There are 4 possible settings for the first line (one bar-graph or three pairs of different parameters):

 Forward bar-graph

 Forward Power _ Reflected Power

 Forward Power _ SWR

 Plate voltage Up _ Plate current Ip

Second and third line are divided to the left and the right side, editable independently. To each of these

positions one of the 15 different parameters should be set.

If you finish first line settings, press ESC to go

back to the row selection.

To start edit second line, press 2Row button.

Type of supported TCVR and working
