User's Manual

Exhibit 6 Page 13 from 35
BAND - Band selector switch
TUNE - Anode capacitor for tuning
(higher frequencies to "0"; lower frequencies to „100“).
LOAD - Output capacitor tunes antenna load resistance to the amplifier.
Capacity is low at „100“ and high at "0" on the scale.
WATMETER - Analog double system meter for forward and reflected power measuring

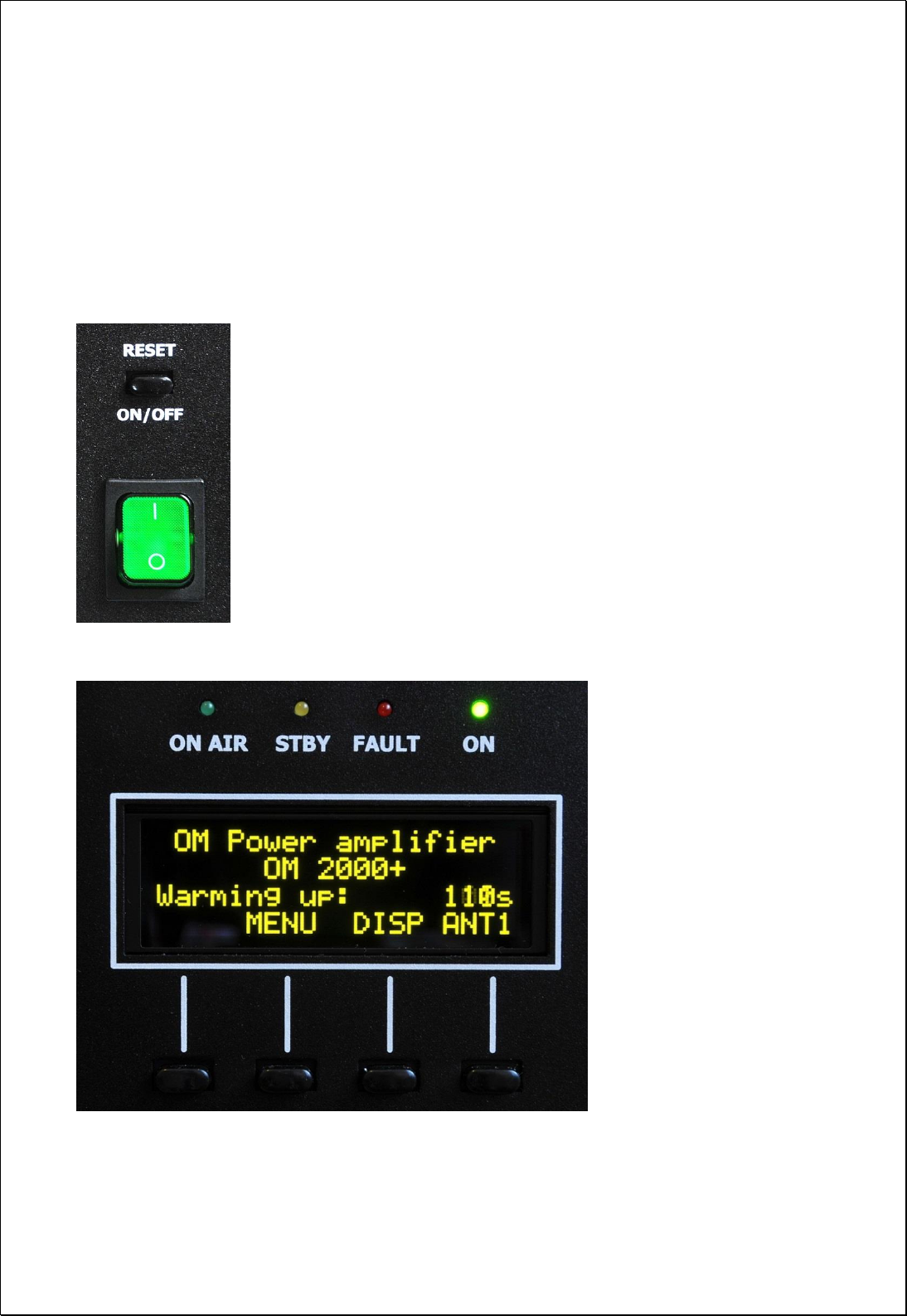

ON / OFF - Long press (abt. 1 sec.) to switch PA ON/OFF
RESET - Short press to reset faults or warnings
0 / I Power ON small 12V APU for logic and protection circuits
You can switch Antenna ports even if PA is switched OFF.
S1 S2 S3 S4
