Installation manual

Supplied By www.heating spares.co Tel. [phone]

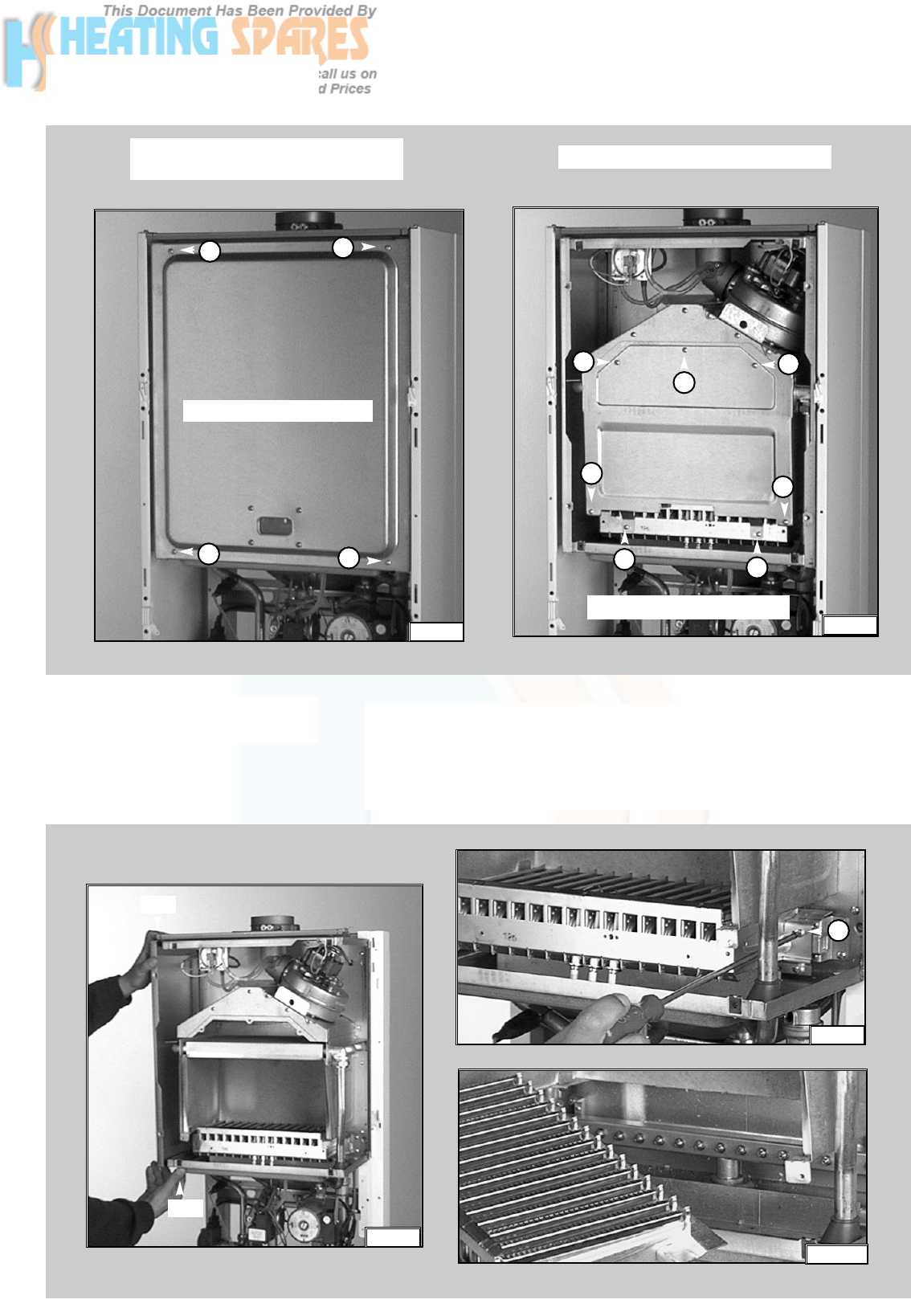

1. Remove the side panels of sealed chamber (fig. 1.8) ;
2. Remove the screws “F” of the burner (see fig. 1.9) ;
3. Remove the burner (see fig. 1.10) ;
4. Remove the injectors using a No. 7 socket spanner;
5. Replace in reverse order.
Removing the burner and the
injectors
5
B005
Removing the sealed chamber
frontal cover
1.3 Access to the
Combustion Chamber
Remove the screws “D”
Remove the screws “E”
Removing the combustion cover
E
E
E
E
E
E
E
Fig. 1.6
Fig. 1.7
D
D
D
D
Fig. 1.8
Fig. 1.9
Fig. 1.10
F
push
push
