Operating and installation instructions
CODI
®
S/B - Condensate collection / steam distribution
4.2.1 Condensate collection manifold
- Condensate enters secondary connection B (side)
- As a rule condensate is discharged at the top
- Secondary connections B are opened and shut by shut-off valves A
4.2.2 Steam distribution manifolds
- Steam enters at top
- Steam is discharged through secondary connections B (side)
- Secondary connections B are opened and shut by shut-off valves A

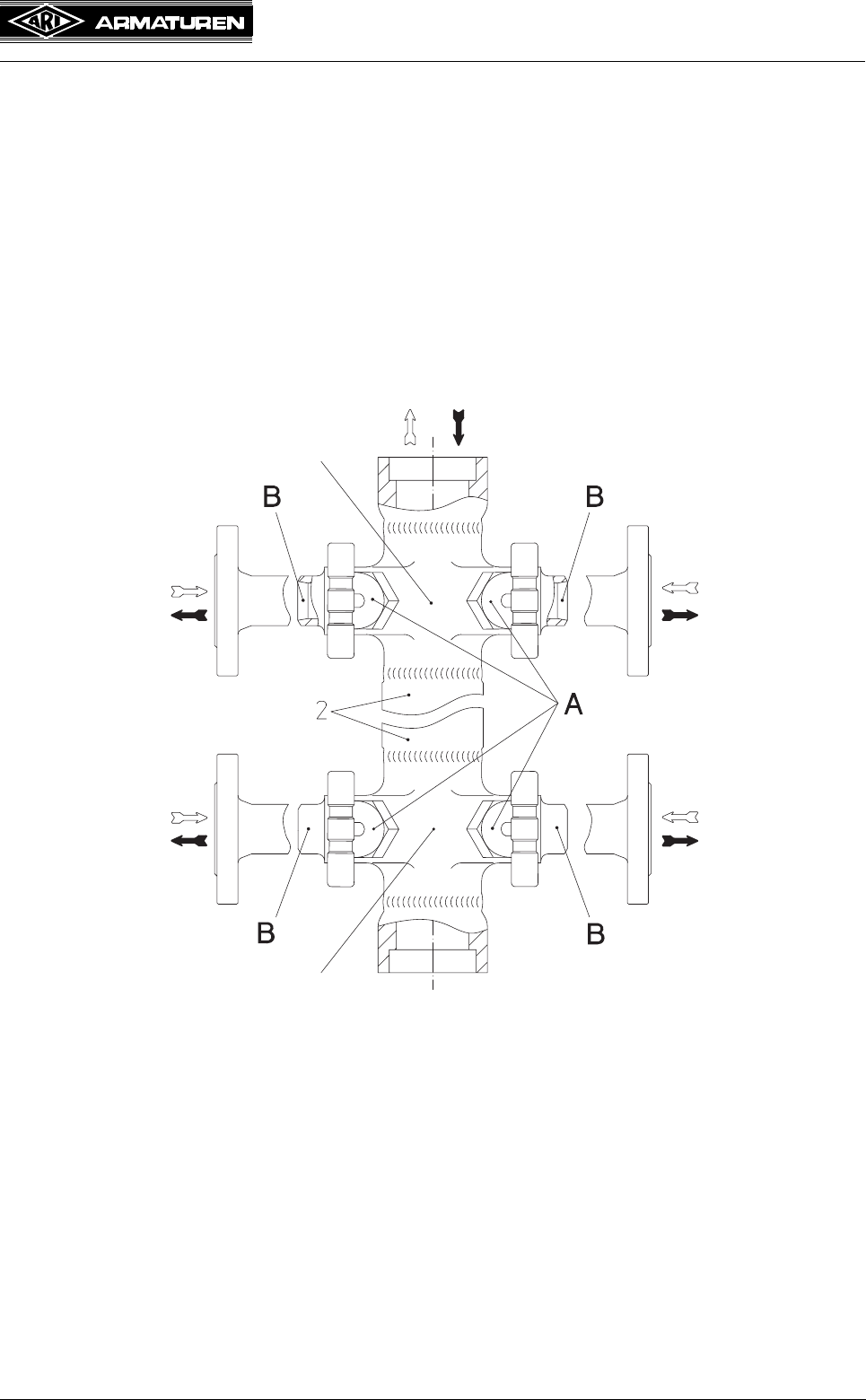

Fig. 1: Design CODI
®
Conden collection
Steam distribution
Module
Module
Conden collection
Steam distribution
Conden collection
Steam distribution
Conden collection
Steam distribution
Conden collection
Steam distribution
Flow direction in case of
